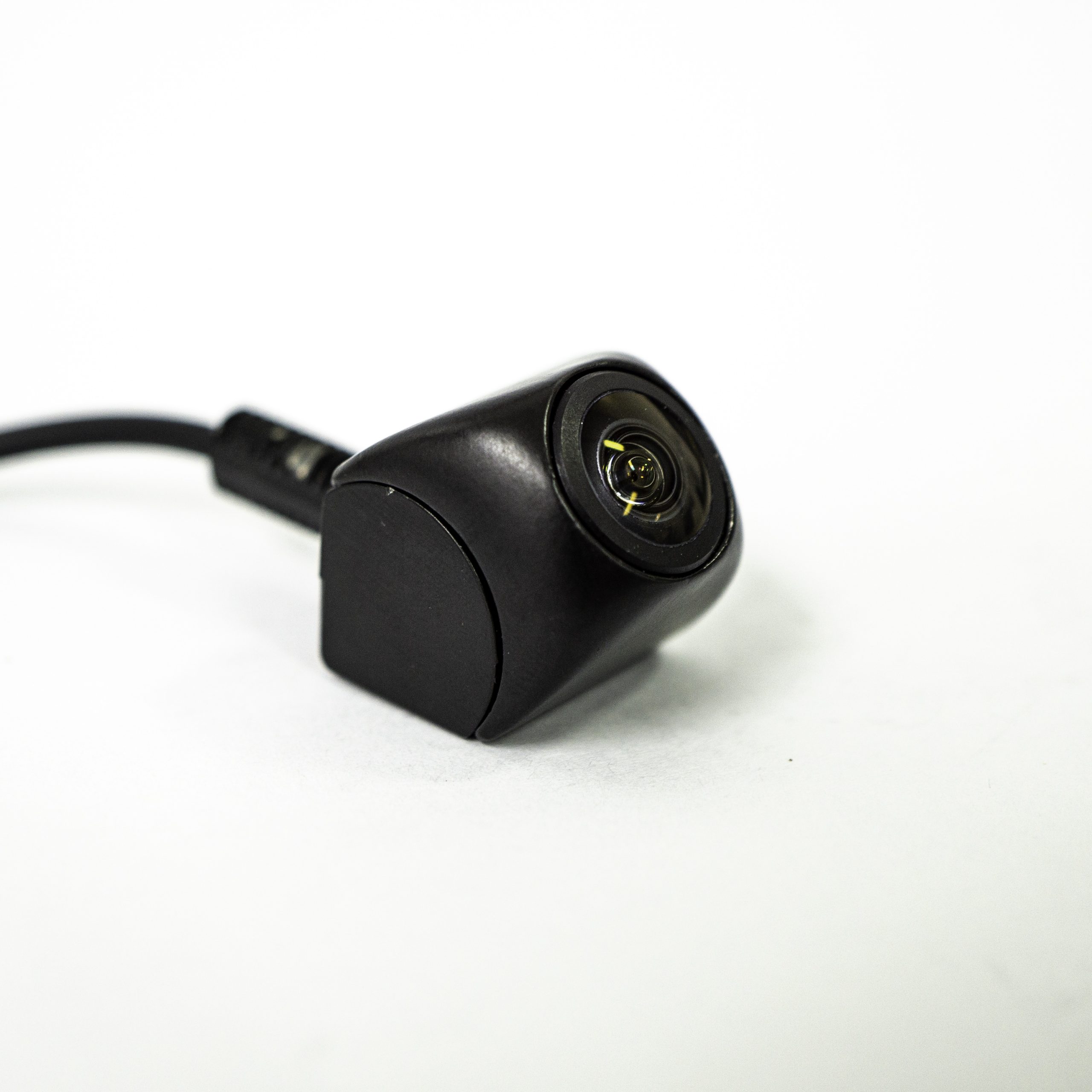

Mini Square Rear View Camera - P3

$189.00

Overview

▪ 160° Viewing Angle
▪ 1/4 CCDS sensor / 0.6 Lux
▪ DC 5-15V / 40mA at 12V
▪ 20 x 20 x 18 mm
▪ Normal / Mirror Switch

Mini Square Rear View Camera – 160° Wide Angle, Front/Rear Mountable

The Mini Square Rear View Camera offers a compact, low-profile design ideal for discreet installation on a vertical surface, such as behind a number plate or on a bumper. Using a simple 6mm drilled hole, it can be mounted via a replacement bolt or bracket for a clean, OEM-style look.

Thanks to its reversible image function, this camera is suitable for both front and rear mounting, making it perfect for enhanced rear visibility or eliminating blind spots in front of the vehicle.

Mini Square Rear View Camera - P3 installation

160° Wide-Angle Lens

Broad coverage for obstacle detection and maximum rear visibility when reversing.

Vertical Surface Mounting

Designed for number plate bolt locations or bumper brackets via a 6mm drilled hole.

Normal/Mirror Image Switch

Reversible image function supports both front and rear installation with a single setting.

Ultra-Compact Design

At just 20 x 20 x 18 mm, integrates seamlessly without bulky hardware.

1/4" CCDS Sensor

Delivers sharp imaging with 0.6 Lux low-light sensitivity for clear vision in dim conditions.

Low Power Draw

Operates on DC 5–15V at just 40mA for minimal load on the vehicle's electrical system.

How does this camera mount differently from an under-mount camera?

This model mounts on a vertical surface — such as behind a number plate or on a bumper — rather than underneath a horizontal surface. It uses a 6mm drilled hole with a replacement bolt or bracket.

Can it be used as a front camera?

Yes. The normal/mirror image switch allows it to be installed at the front of the vehicle for forward blind-spot monitoring.

What sensor does it use?

A 1/4" CCDS sensor with 0.6 Lux low-light sensitivity, providing clear imaging even in poor lighting conditions.
