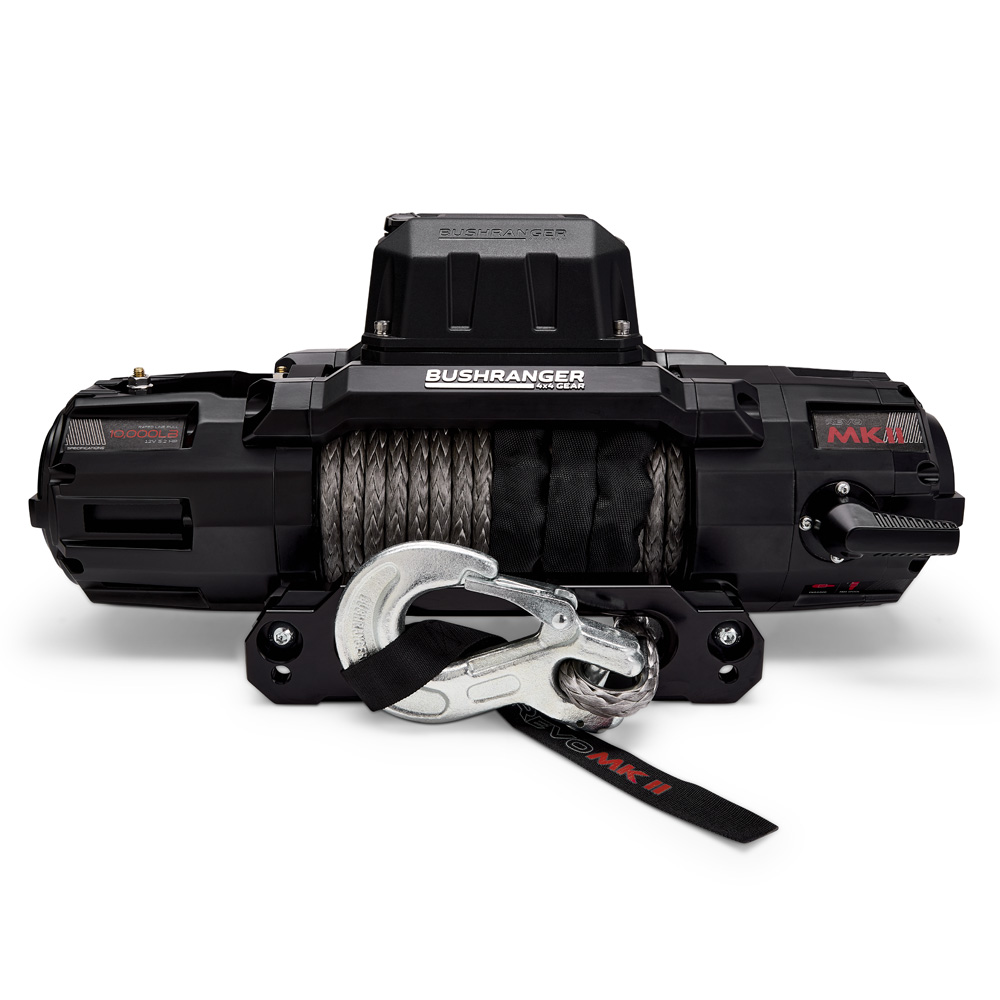

Bushranger Winch REVO MKII | 12,000lb | WIRE

• The Bushranger Winch REVO MKII vehicle recovery winch has been engineered to meet the demands of serious off-road enthusiasts who require dependable performance, even in the most challenging environments.Boasting a wide range of upgrades stemming from years of real-world testing and feedback, the result is an overall lighter weight, easier to fit, safer and more compact winch with increased durability over its predecessor.

  FEATURES AND BENEFITS

  ENGINEERED & PROVEN IN AUSTRALIA The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

  COMPACT MULTI-FIT CONTROL BOX The compact, lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.

  ALBRIGHT CONTACTOR The Albright DC contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.

  PREMIUM MOTOR DESIGN The 12V, 6.2HP series wound motor is constructed using high-grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.

  ZERO DRAG BRAKING SYSTEM The gearbox-mounted brake provides 100% load holding and the capacity for fast-powered unspooling, under no load, without any damage to the winch.

  4 STAGE GEARBOX Features hardened steel gearing for improved load distribution, maximum strength and durability, and is externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.

  ROBUST CONSTRUCTION Uncompromised strength and rigidity are at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.

  EFFORTLESS CLUTCH OPERATION The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.

  POWER ISOLATION SWITCH The highest level of safety comes standard with the inclusion of a 500amp winch isolation switch, providing complete separation of the winch from the vehicle battery when the winch is not in use.

  WATER & DUSTPROOF The completely sealed motor & gearbox is rated to IP68 standard for maximum water, dust and debris protection.

  WIRED REMOTE Compact wired hand controller supplied with a 5m lead, which plugs in via the control box or via a winch plug relocation kit (sold separately).

  FITTED WEIGHT 46.7kg

  KIT INCLUDES:

  REVO MKII winch, wire rope (25m x 10.5mm) with protective sleeve, prewired control box, wired remote control, forged steel hook with pull tag, aircraft grade aluminium hawse fairlead, main power isolation switch, heavy gauge wiring, hi-tensile mounting hardware.

• MODEL: RWM120W DIMENSIONS: 600mm (L) x 194mm (W) x 185mm (H) WEIGHT: (FITTED) 46.7kg RATED LINE PULL: (1st Layer) 12,000lbs (5, 443kg) MOTOR: 4.6kW (6.2 HP) REMOTE CONTROL: Wired Hand Control – 5m Lead ELECTRICAL CONTACTOR: Albright DC88P Contactor GEARBOX: 171:1 2 Stage Planetary & 2 Stage Spur gear BRAKE: Gearbox mounted 100% load holding proportional friction brake CLUTCH: Rotating Ring Gear | 90° Turn handle (no lift) ROPE: 10.5mm diameter x 25m Wire Rope FAIRLEAD: Stainless Steel 304 Roller Fairlead FINISH: Electrophorus Pretreated Black Satin Powder Coated Finish WATERPROOF RATINGS: IP68 Winch Motor and Gearbox WARRANTY: Limited Lifetime Warranty (7 Year Warranty on Electrical Components) CERTIFICATIONS: CE
