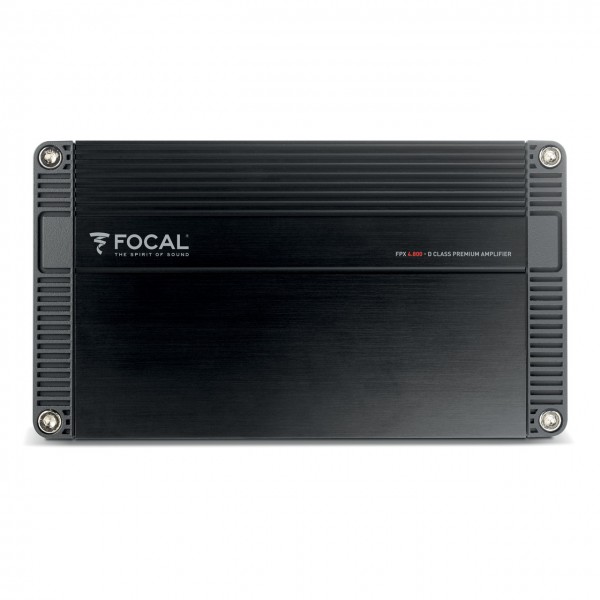

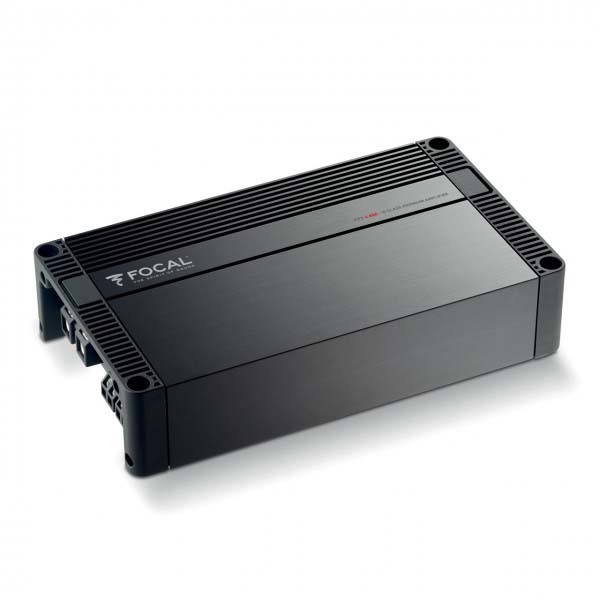

FOCAL FPX 4.800 4/3/2-CH AMPLIFIER

The Focal FPX 4.800 is a very compact 4-channel Class D amplifier delivering 4 x 120W RMS at 4 Ohms. Designed to combine genuine power with a minimal footprint, it supports 4-/3-/2-channel configurations and 2-/4-channel input modes, and is stable at 2 Ohms for compatibility with a wider range of speaker loads. The FPX 4.800 measures 23.7 x 13.2 x 5.3 cm (9 21⁄64 x 5 13⁄64 x 23⁄32 inches).

Great Versatility

Thanks to its high power output, the FPX 4.800 can drive front and rear loudspeakers, or a full hi-fi installation consisting of a 2-way front component kit and a subwoofer — all from a single compact amplifier.

Per-Pair Active Crossover Settings

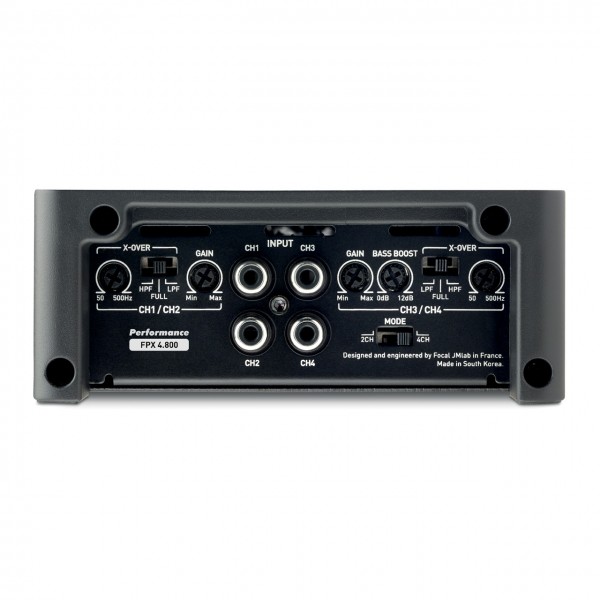

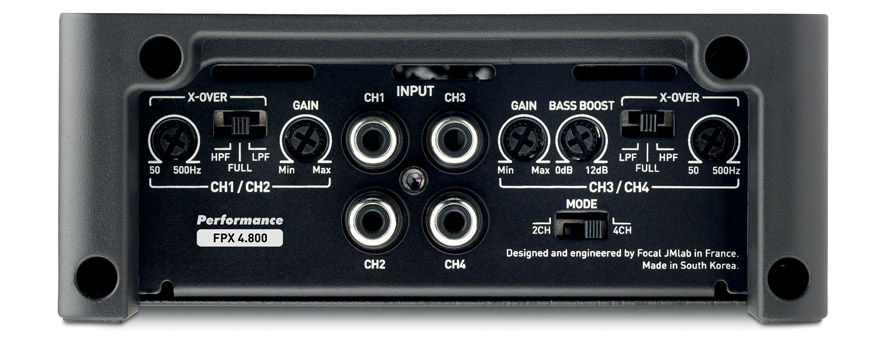

For precise loudspeaker management, each pair of channels has an active crossover adjustable from 50 to 500 Hz in high-pass, low-pass, or full-range mode. This allows individual tuning of the front and rear channel pairs to suit the specific speaker drivers installed in your vehicle.

Thermal Control

To obtain an amplifier that is both powerful and musical, heat dissipation control is essential. By using Class D technology, Focal has significantly reduced heat dissipation requirements for the FPX range, enabling a very compact and powerful design without sacrificing musicality.

4 x 120W RMS at 4 Ohms; the amplifier is also stable at 2 Ohms for higher output with compatible speaker configurations.

Yes, operating in 3-channel mode you can drive a 2-way front component kit and a subwoofer from a single amplifier.

The 2/4-channel input selector makes it compatible with both single-stereo OEM and dual-stereo aftermarket source units.

23.7 x 13.2 x 5.3 cm (9 21⁄64 x 5 13⁄64 x 23⁄32 inches).

Yes, each pair of channels has its own active crossover adjustable from 50 to 500 Hz in high-pass, low-pass, or full-range mode.
