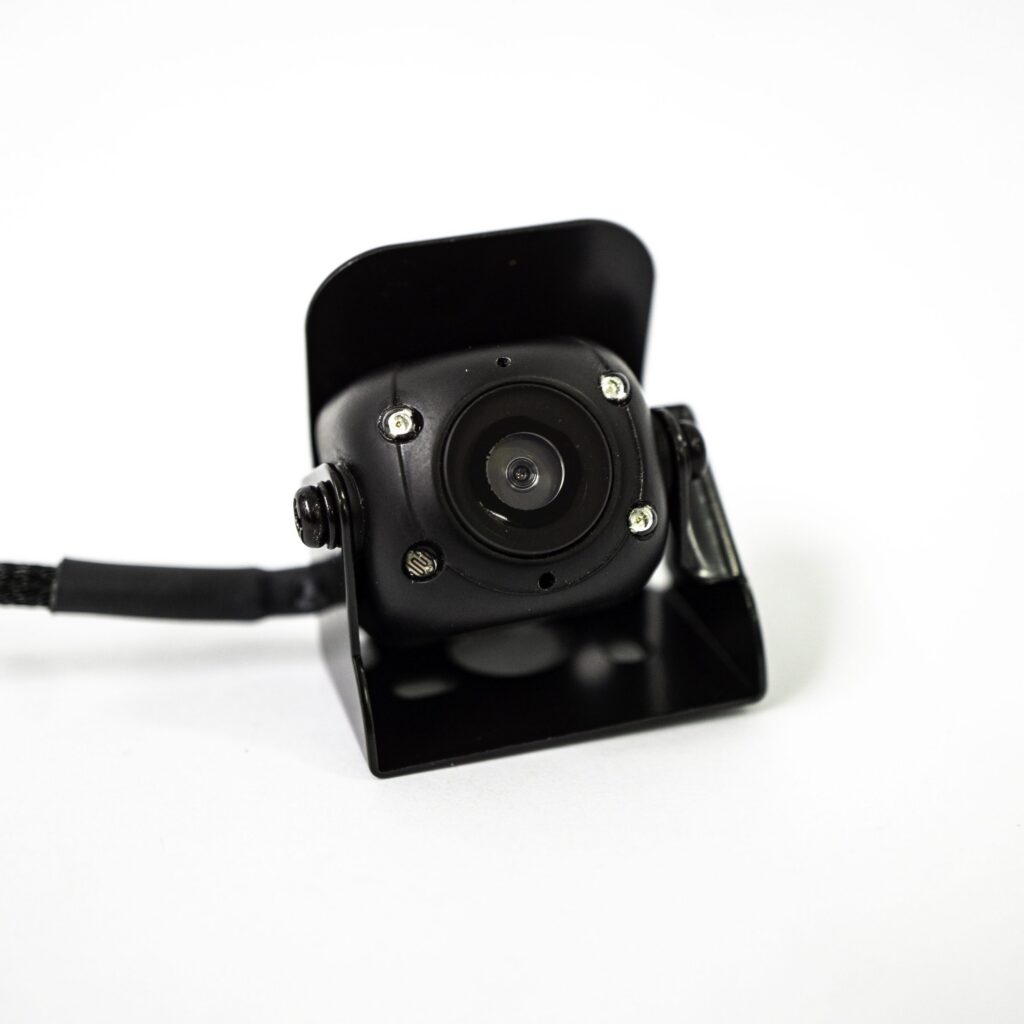

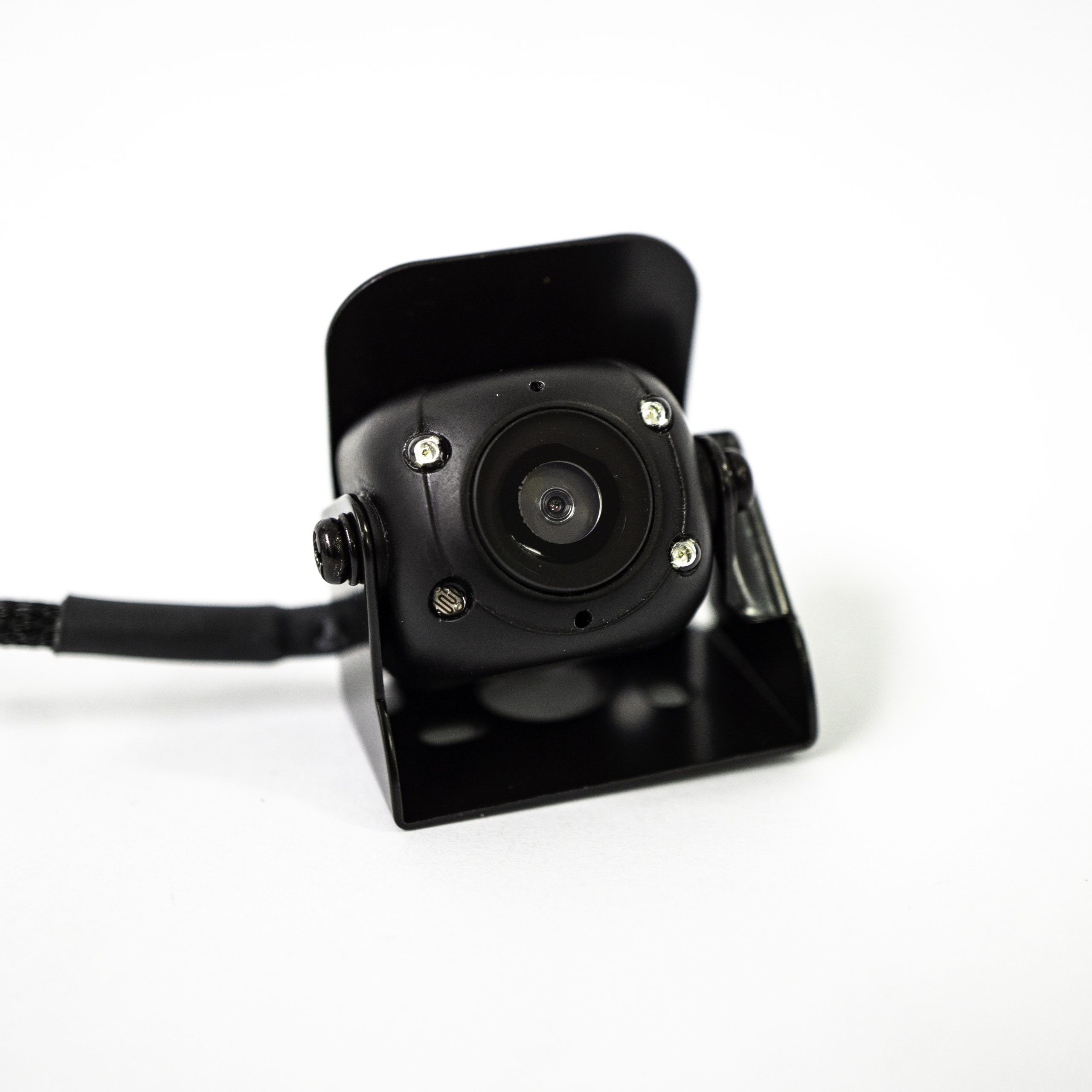

Mini Square Camera With IR - Q8

$189.00

Overview

▪ IR LED x 3pcs

▪ 150° Viewing Angle
▪ 1/4” CCDS sensor
▪ DC 6-30V, 60mA
▪ 29 x 22 x 24 mm
▪ Applied to 12V or 24V Vehicles

The Mini Square Camera with IR (Q8) is a compact, versatile camera solution for drivers who need enhanced visibility day or night. Equipped with 3 built-in infrared LEDs, this camera provides clear image output in low-light and no-light environments, making it ideal for reverse assistance, blind-spot monitoring, or security recording in poorly lit areas.

Its wide 150° viewing angle, compact square body, and broad voltage compatibility (DC 6–30V) make it equally suitable for cars, 4WDs, trucks, trailers, buses, and other 12V or 24V vehicles. Multiple mounting positions — rear, side, or front — add further versatility to this capable camera.

Mini Square Camera With IR - Q8 installation

Infrared Night Vision

Three built-in IR LEDs deliver clear image output in darkness or very low-light conditions where passive cameras struggle.

150° Wide Viewing Angle

Captures a broad field of view to support reversing assistance, blind-spot monitoring, and general situational awareness.

1/4″ CCDS Sensor

Reliable image sensor provides consistent picture quality across a range of lighting and environmental conditions.

12V and 24V Compatible

Wide voltage range (DC 6–30V) makes the Q8 suitable for both light vehicles and heavy commercial or trailer applications.

Compact Size: 29 × 22 × 24 mm

Small square profile allows for discreet mounting in tight or restricted locations around the vehicle body.

Low Power Consumption

Draws only 60 mA at 12V, placing minimal load on the vehicle's electrical system even when the IR LEDs are active.

Multiple Mounting Positions

Can be mounted at the rear, side, or front of the vehicle to suit a specific visibility or monitoring requirement.

Does this camera work on 24V vehicles such as trucks or buses?

Yes. The Q8 operates across DC 6–30V, making it fully compatible with both 12V and 24V vehicle electrical systems.

How does the infrared night vision perform?

Three built-in IR LEDs activate in low-light conditions to illuminate the camera's field of view, providing usable image quality in darkness where passive cameras produce little or no image.

Can the Q8 be used as a front or side camera?

Yes. The camera supports rear, side, and front mounting positions, making it a flexible choice for multiple visibility applications on the same vehicle.

What vehicles is this camera suitable for?

The Q8 is suitable for cars, 4WDs, trucks, trailers, buses, and any other 12V or 24V vehicle requiring a compact camera solution.
