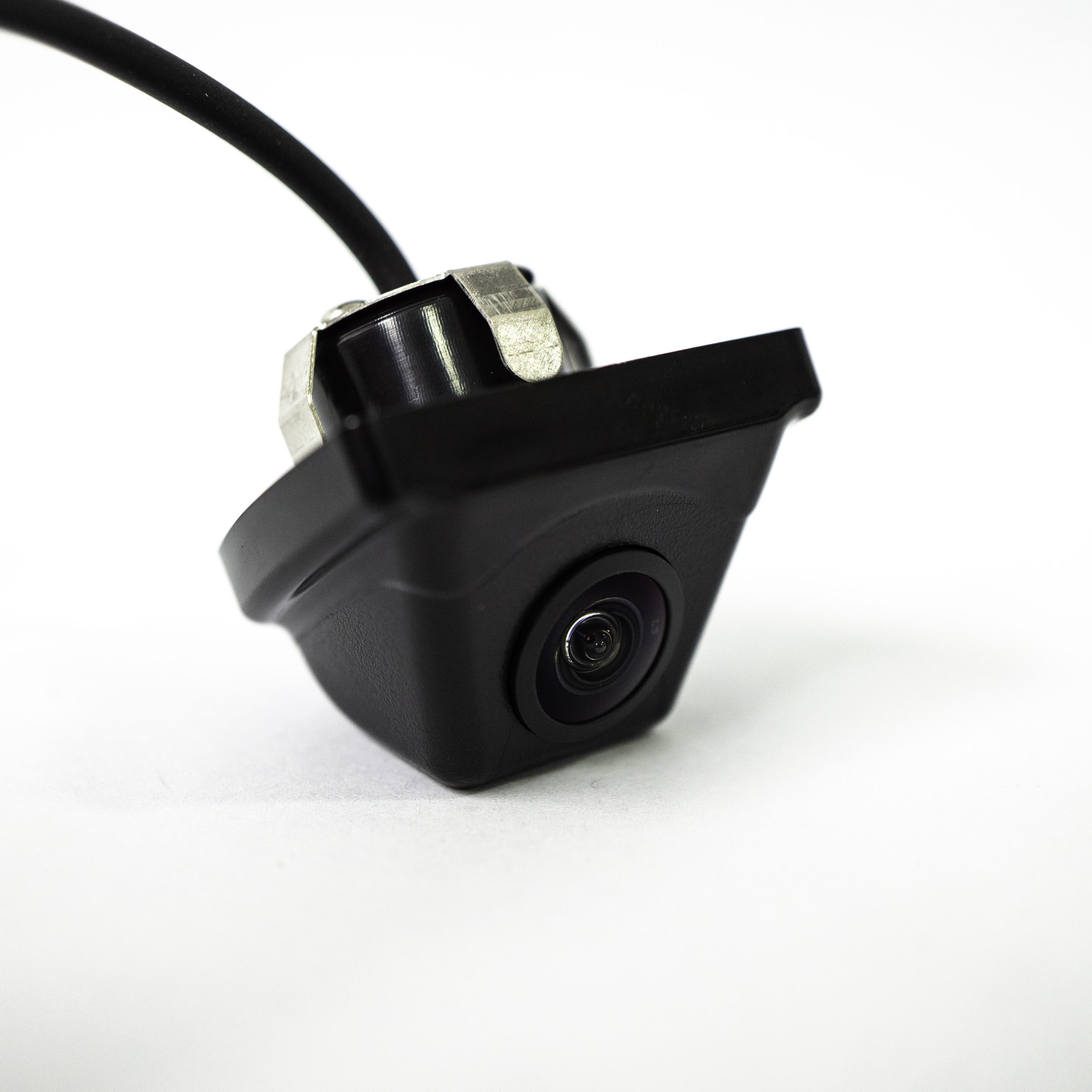

Mini Rear View Camera - P7

$189.00

Overview

▪ 160° Viewing Angle
▪ 1/4 CCDS sensor / 0.6 Lux
▪ DC 5-15V / 40mA at 12V
▪ 32 x 28 x 19 mm
▪ Hole drilled : 18 mm (diameter)
▪ Plug in type

ENQUIRE NOW

The Mini Rear View Camera (P7) is a discreet under-bumper camera solution ideal for improving rear visibility when reversing or parking. Featuring a 160° wide-angle lens, this compact camera captures a broad field of view, helping drivers avoid obstacles and eliminate blind spots with ease.

Designed for flush mounting via an 18 mm drilled hole, the P7 sits neatly under a bumper or trim panel. It is equipped with a 1/4″ CCDS sensor that delivers reliable image clarity even in low-light conditions (0.6 Lux), and supports optional on-screen parking guidelines for added safety and convenience when reversing.

160° Wide-Angle Lens

Captures a broad rear field of view to help drivers detect obstacles and eliminate blind spots when reversing.

Flush-Mount Design

Installs cleanly through an 18 mm drilled hole in the bumper or trim, sitting flush for a discreet, professional finish.

1/4″ CCDS Sensor / 0.6 Lux

Delivers reliable image quality in low-light environments such as car parks and night-time reversing situations.

Compact Size: 32 × 28 × 19 mm

Minimal footprint makes the P7 ideal for installations where space behind the mounting surface is limited.

Optional Reversing Guidelines

Supports optional on-screen parking guidelines to assist with distance judgement and precise parking manoeuvres.

Plug-In Connector

Plug-in wiring connector simplifies installation and allows for quick, clean cable management.

Wide Voltage Compatibility

Operates on DC 5–15V, drawing only 40 mA at 12V — low power consumption compatible with most vehicle electrical systems.

What size hole do I need to drill to mount this camera?

An 18 mm diameter hole is required for the flush-mount installation.

Does this camera support parking guidelines on screen?

Yes. The P7 supports optional on-screen reversing guidelines, though compatibility with guidelines depends on the head unit or display it is connected to.

What are the power requirements?

The camera operates on DC 5–15V and draws just 40 mA at 12V, placing minimal load on the vehicle's electrical system.

How does the P7 perform at night?

The 1/4″ CCDS sensor with 0.6 Lux sensitivity provides solid low-light performance for a passive camera. For very dark environments, consider a camera with built-in infrared LEDs such as the Mini Square Camera with IR (Q8).
