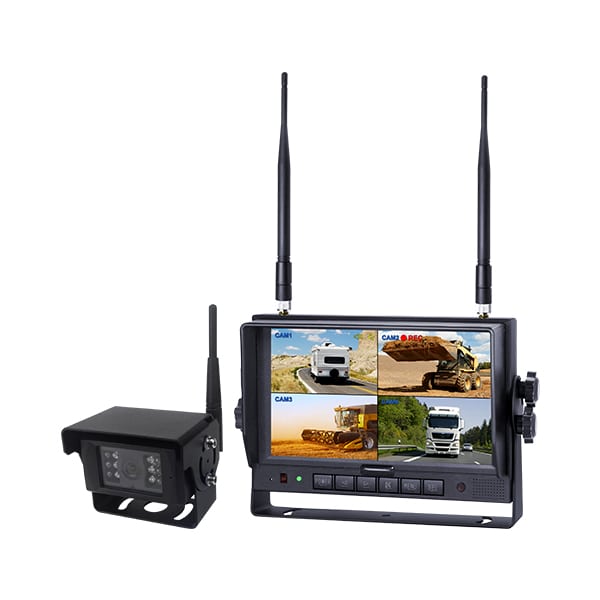

AXIS MONITOR 9 INCH HIGH RES QUAD VIEW

$799.00

Overview

The HD1409Q, is an exceptional High Resolution 12/24V quad view monitor designed to provide a crystal-clear image and enhanced viewing experience. With its robust Heavy Duty construction, this monitor is perfect for trucks, machinery, and various vehicles. The HD1409Q offers the added advantage of connecting up to 4 cameras, providing incredible flexibility for monitoring multiple angles simultaneously.

ENQUIRE NOW

AXIS HD1409Q – 9 Inch High Resolution Quad View Monitor

The HD1409Q is an exceptional high resolution 12/24V quad view monitor designed to provide a crystal-clear image and enhanced viewing experience. With its robust heavy-duty construction, this monitor is perfect for trucks, machinery, and a wide range of vehicles. The HD1409Q offers the added advantage of connecting up to 4 cameras simultaneously, providing incredible flexibility for monitoring multiple angles at once.

Featuring a 9" 1024 x 600 pixel LCD screen with 650 cd/m² brightness and wide 85° viewing angles in all directions, the HD1409Q delivers a bright, clear picture even in demanding environments. The capacitive touchscreen interface makes switching between views intuitive and responsive.

Multiple split-screen display modes — including Single, Dual, Triplex, Quad, Trefoil, Y-Split, H-Split, and PIP (picture-in-picture) — give you full control over how your camera feeds are arranged on screen. The monitor automatically supports PAL, NTSC, 720P, and 1080P video formats. Five camera triggers and selectable on/off guidelines add further versatility, while a built-in speaker handles audio output from connected cameras.

The unit accepts 10–32V DC negative-ground input, covering both 12V and 24V vehicle electrical systems. Four 4-pin aviation video input connectors (universal standard male configuration) make camera installation straightforward. An operating temperature range of -20°C to +70°C ensures reliable performance across harsh Australian conditions.

AXIS MONITOR 9 INCH HIGH RES QUAD VIEW installation

9" High Resolution Display

1024 x 600 pixel LCD panel with 650 cd/m² brightness for a clear, vivid picture in any lighting condition.

Quad View – Up to 4 Cameras

Connect up to four cameras simultaneously and view them across multiple split-screen configurations including Quad, PIP, Y-Split, and more.

12V and 24V Compatible

Accepts 10–32V DC input, making it suitable for passenger vehicles, heavy-duty trucks, and machinery.

Wide 85° Viewing Angles

Clear visibility from left, right, up, and down ensures a usable image regardless of mounting position.

Capacitive Touchscreen

Responsive touch interface for easy, intuitive switching between display modes and settings.

Multi-Format Video Support

Automatically detects and supports PAL, NTSC, 720P, and 1080P camera signals for broad camera compatibility.

Heavy-Duty Operating Range

Rated from -20°C to +70°C, built to perform reliably across extreme Australian and industrial environments.

Built-In Speaker

Integrated audio output for cameras with audio capability, adding an extra layer of situational awareness.

How many cameras can I connect to the HD1409Q?

The monitor supports up to 4 cameras simultaneously via four 4-pin aviation video input connectors, and includes 5 camera trigger inputs.

Does this monitor work with 24V truck electrical systems?

Yes. The HD1409Q accepts 10–32V DC input, making it fully compatible with both 12V and 24V vehicle systems.

What camera resolutions does it support?

The monitor automatically detects and displays PAL, NTSC, 720P, and 1080P video signals, so it works with a wide range of standard and HD cameras.

Can I view all four cameras at the same time?

Yes. The monitor offers multiple split-screen modes including Quad view, PIP (picture-in-picture), Dual, Triplex, and others, so you can monitor all angles simultaneously.
