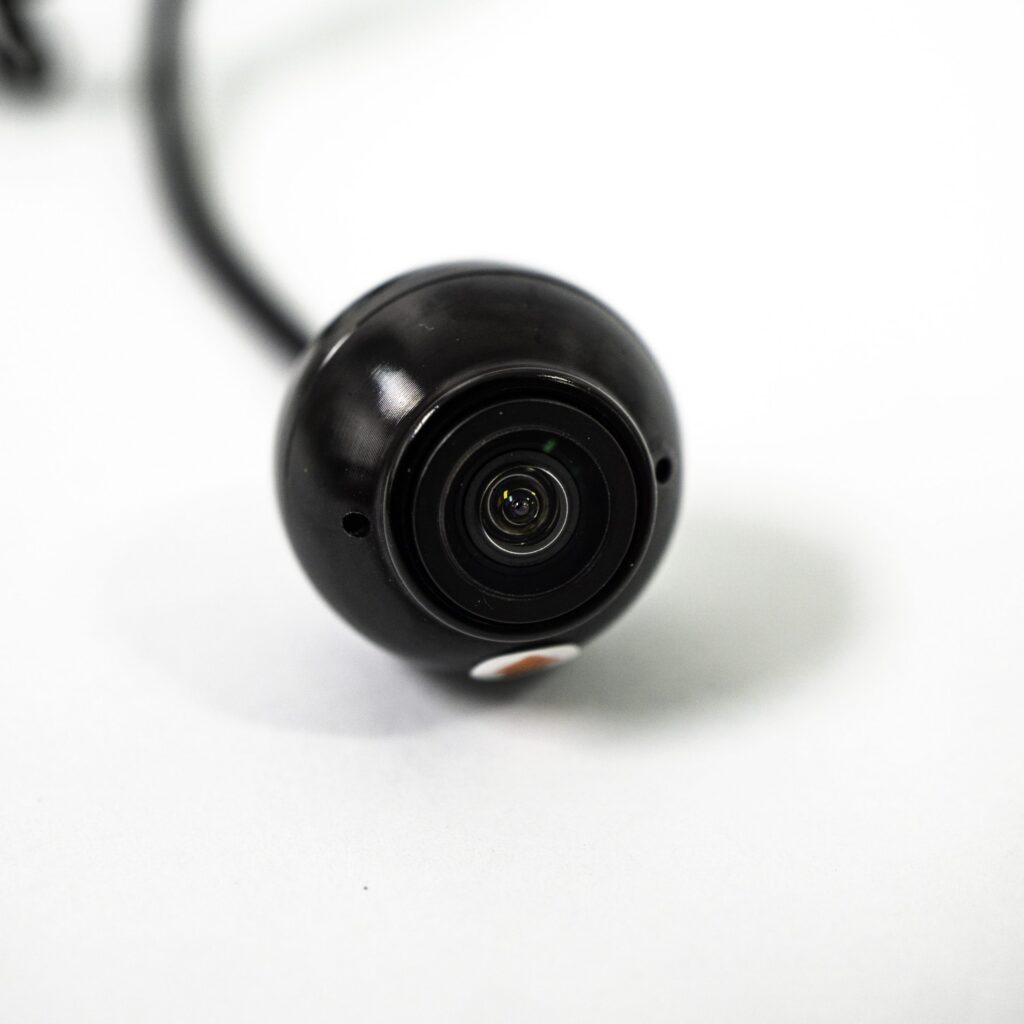

Universal Mini Ball Camera - S9

$189.00

Overview

▪ 160° Viewing Angle
▪ 1/4 CCDS sensor / 0.6 Lux
▪ DC 5-15V / 40mA at 12V
▪ Normal / Mirror Switch

▪ Different bracket holders for universal installation

▪ 360 degrees rotated camera body

ENQUIRE NOW

Universal Mini Ball Camera — 160° Viewing Angle with 360° Adjustable Body

The Universal Mini Ball Camera is a compact and highly flexible camera solution designed to suit a wide range of vehicles and mounting locations. Featuring a 160° wide-angle lens, this camera delivers clear and reliable visibility for reversing, blind spot detection, or front-view applications.

Thanks to its 360° adjustable ball-style camera body, you can easily fine-tune the viewing angle to suit your vehicle's unique installation requirements. It comes with multiple mounting brackets, making it the perfect choice for universal installation across cars, SUVs, 4WDs, trucks, trailers, and commercial fleets.

Universal Mini Ball Camera - S9 installation

160° Wide-Angle Lens

Delivers a broad field of view for reversing, blind spot detection, or front-view monitoring applications.

1/4 CCDS Image Sensor

High-quality image sensor provides clear, reliable video output in a wide range of conditions.

Low-Light Performance

Rated to 0.6 Lux for enhanced visibility in low-light environments such as car parks and poorly lit areas.

Normal / Mirror Image Switch

Switchable normal/mirror image mode allows the camera to be correctly oriented whether mounted at the front or rear of a vehicle.

360° Rotatable Camera Body

The ball-style camera body rotates a full 360°, allowing precise angle adjustment to suit any installation position.

Broad Voltage Range

Operates on DC 5–15V with low power consumption of 40mA at 12V, compatible with most vehicle electrical systems.

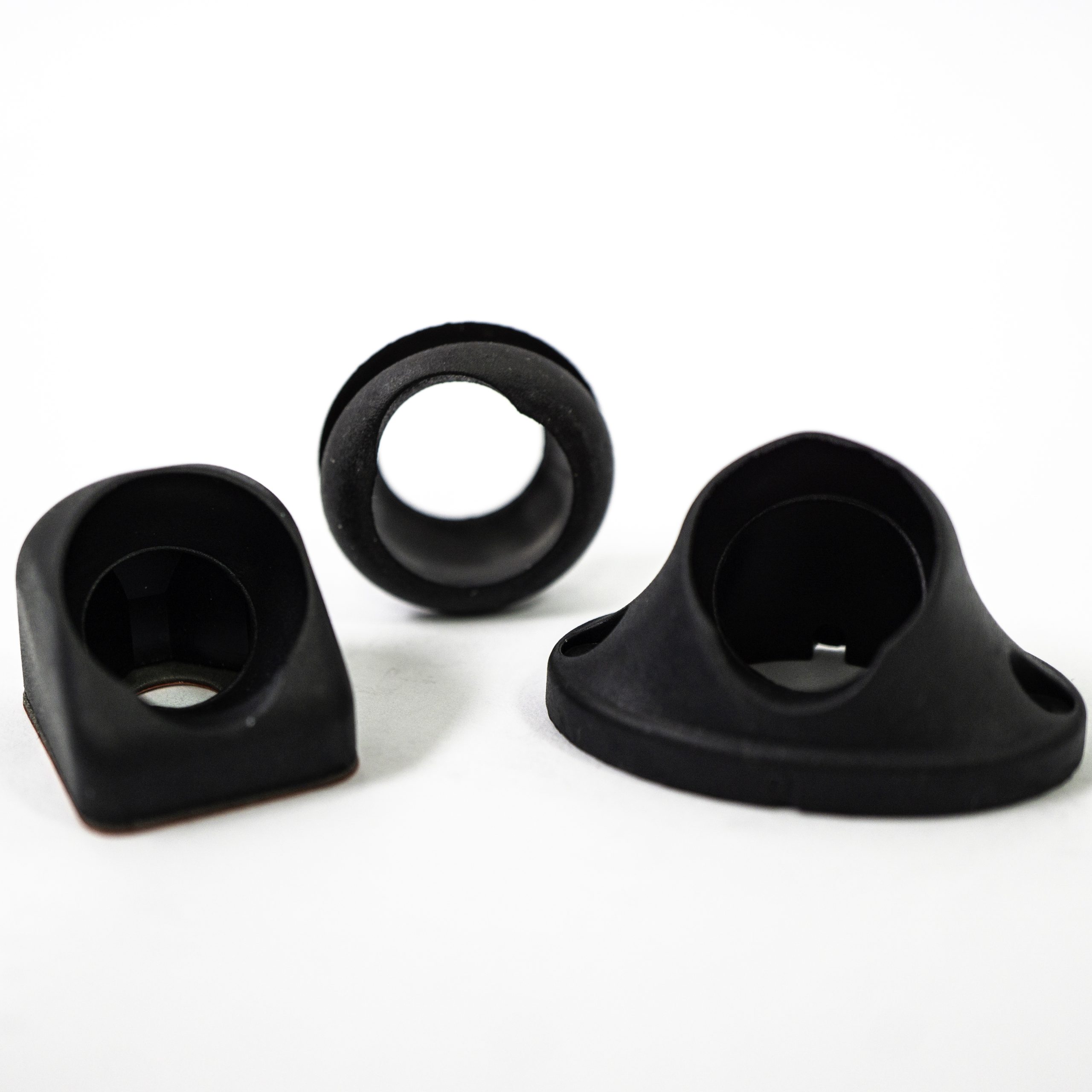

Multiple Mounting Brackets Included

Supplied with a variety of bracket holders for flexible, universal installation across different vehicle types and mounting surfaces.

Can this camera be used for both front and rear mounting?

Yes. The camera includes a switchable normal/mirror image mode so the picture orientation is correct whether the unit is mounted at the front or rear of the vehicle.

What vehicles is the Universal Mini Ball Camera compatible with?

The camera is designed for universal installation and is compatible with cars, SUVs, 4WDs, trucks, trailers, and commercial fleets. Multiple mounting brackets are included to suit different installation surfaces.

How does the camera perform in low light?

The camera is rated to 0.6 Lux, providing enhanced visibility in low-light environments such as dimly lit car parks or night reversing situations.

What voltage does this camera require?

The camera operates on DC 5–15V and draws 40mA at 12V, making it compatible with standard vehicle electrical systems.

How do I adjust the viewing angle?

The ball-style camera body rotates a full 360°, letting you fine-tune the viewing angle to suit your specific mounting location and vehicle requirements.
