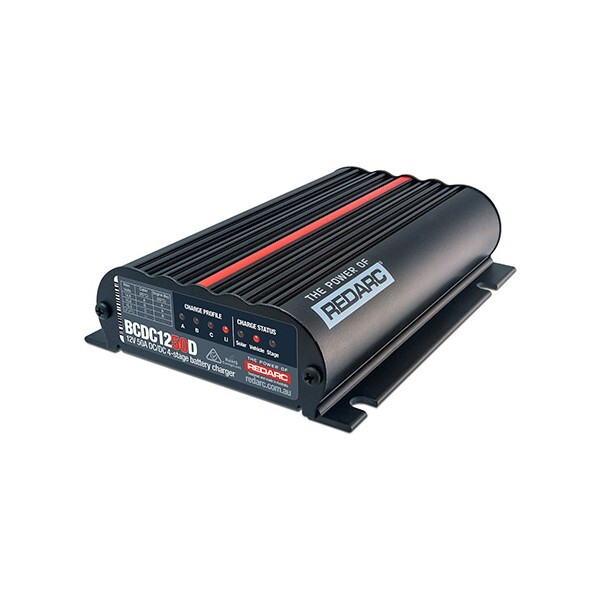

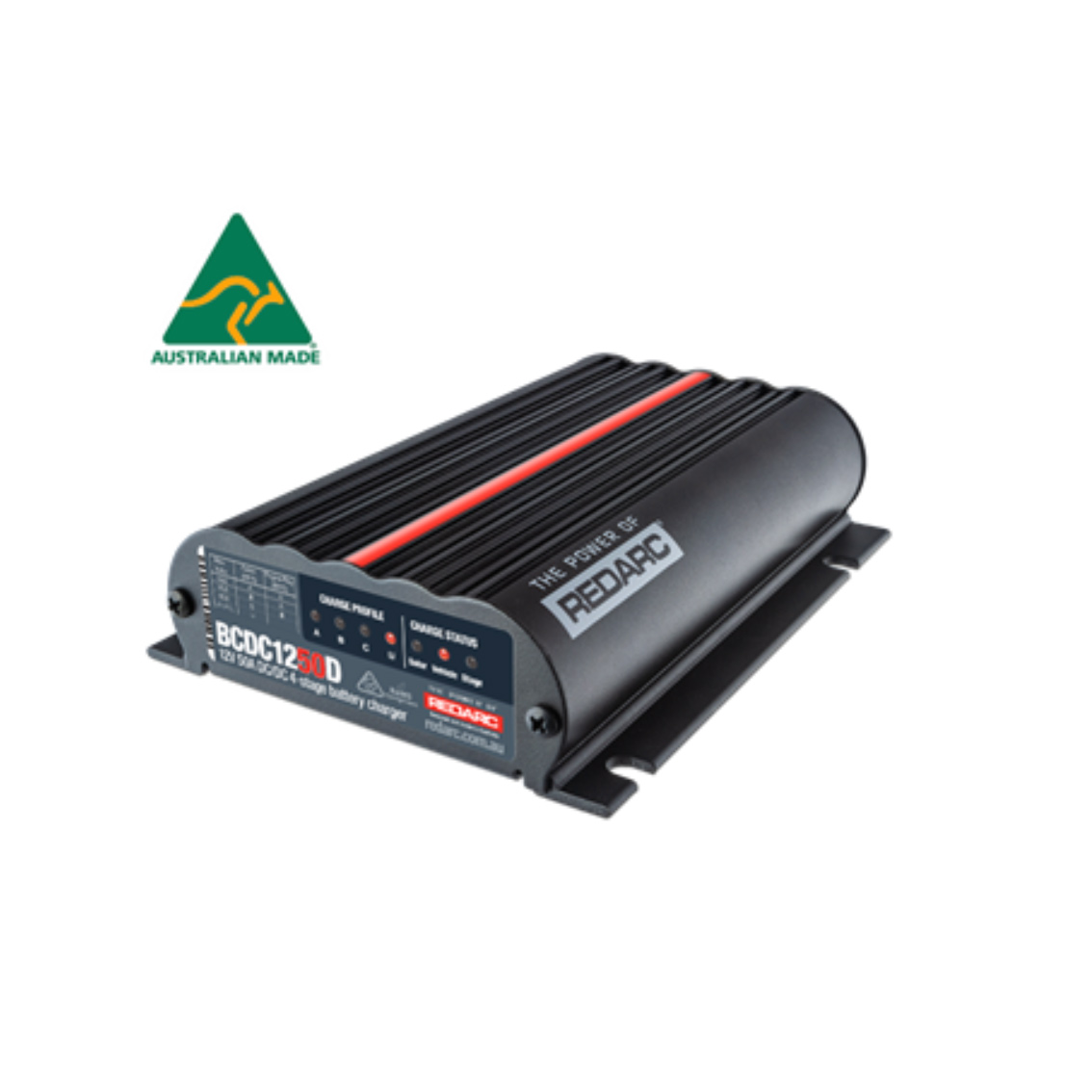

The REDARC BCDC1250D is a 12V 50A In-vehicle DC to DC battery charger. It features the next generation in REDARC In-vehicle charging technology, charging from Solar and DC inputs simultaneously.
The REDARC BCDC1250D In-vehicle Battery Charger is the next generation in REDARC’s DC to DC charging technology, with additional features that make it the most advanced dual battery charger on the market.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1250D will charge from both solar and the alternator simultaneously. And, with built-in ‘Green Power Priority’ it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1250D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.
For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH. For higher capacity needs of over 200AH, REDARC recommends the BCDC1250D.
Proven and Tested
The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.
Built in Australia and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- 50amp output makes it the most powerful in REDARC's BCDC range
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries

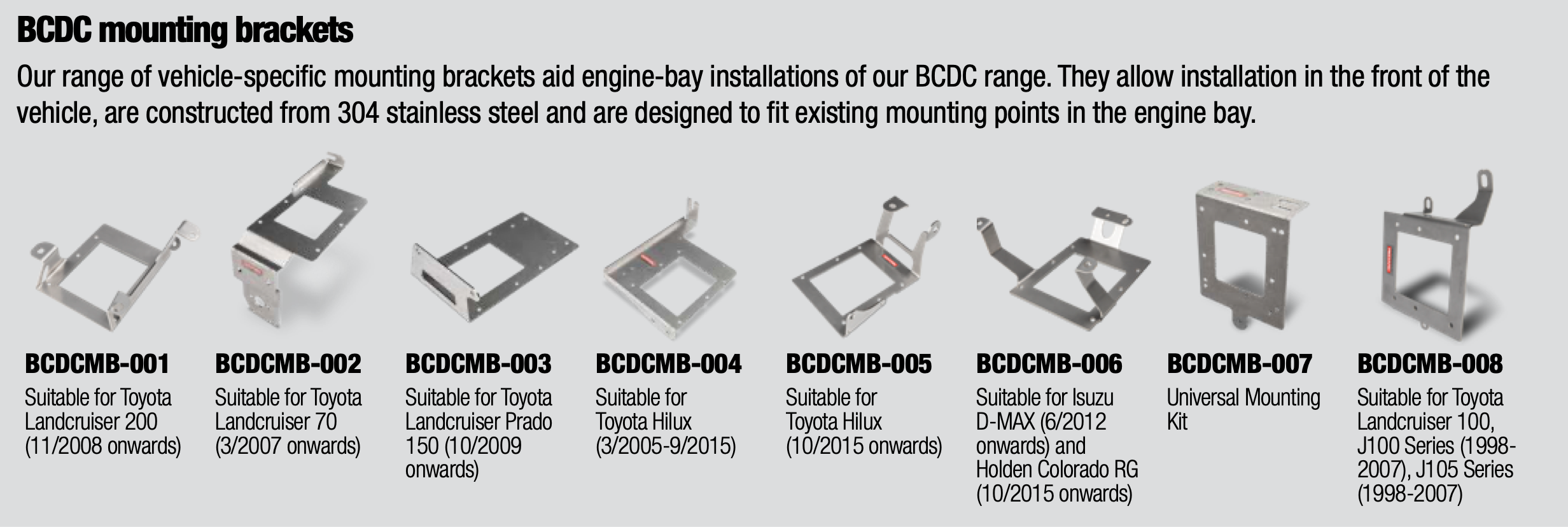

Mounting Brackets
In addition to the use of quality fuse kits, REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow, ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
Specifications
| Input (Operating) Voltage |
9 - 32VDC |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
15.3V |
| Output Current Rating (Cont.) |
50A |
| Input Fuse Rating |
60A |
| Output Fuse Rating |
60A |
| Standby Current Draw |
<100mA |
| Output Power |
750W |
| Width (mm) |
120 |
| Height (mm) |
37 |
| Length (mm) |
165 |
| Weight (kg) |
1 |
| Warranty |
2 Years |
