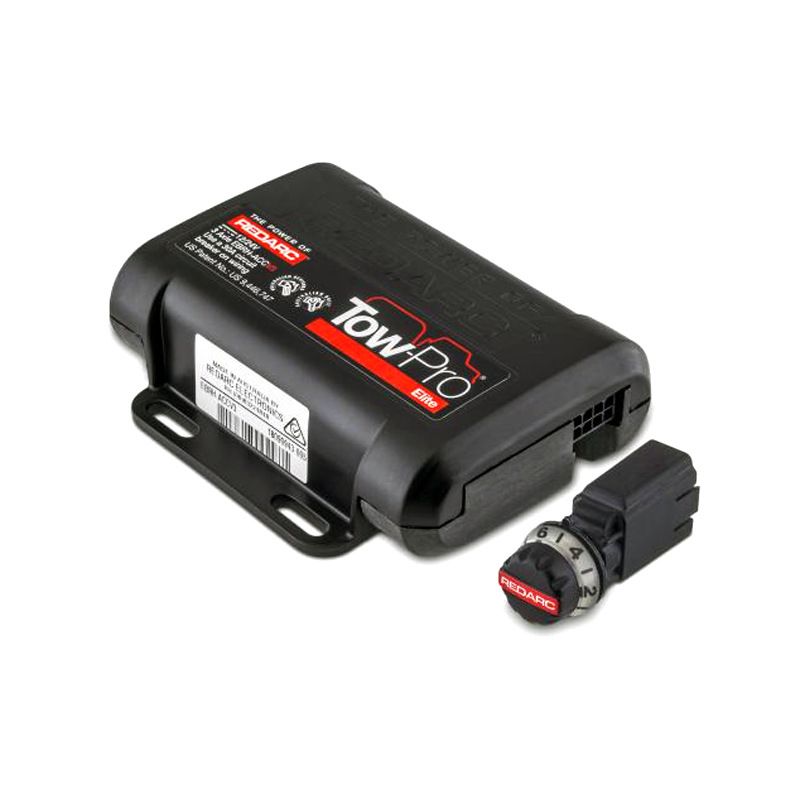

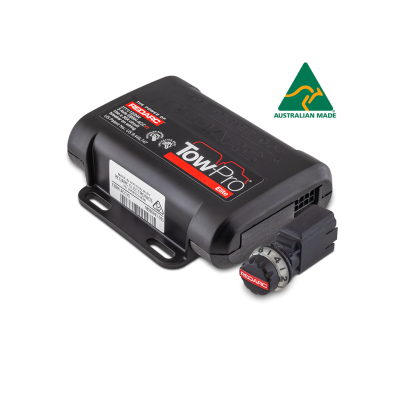

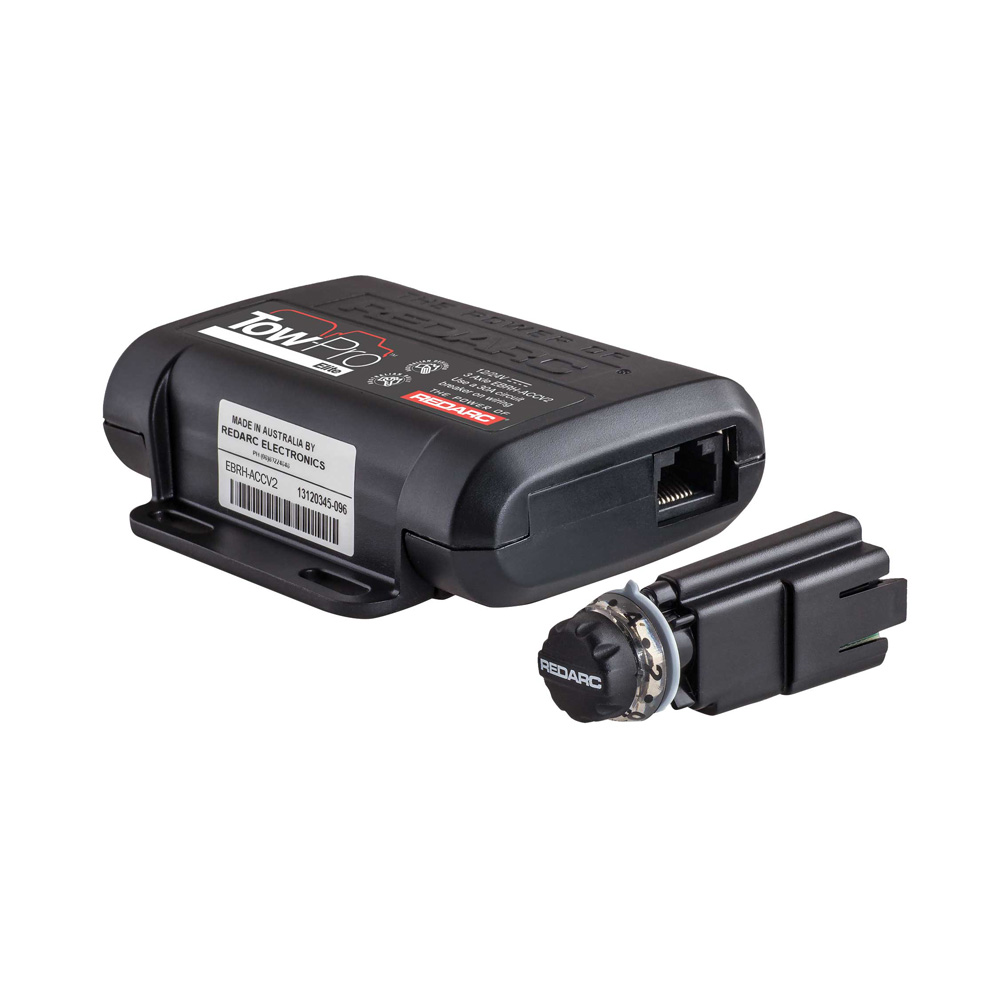

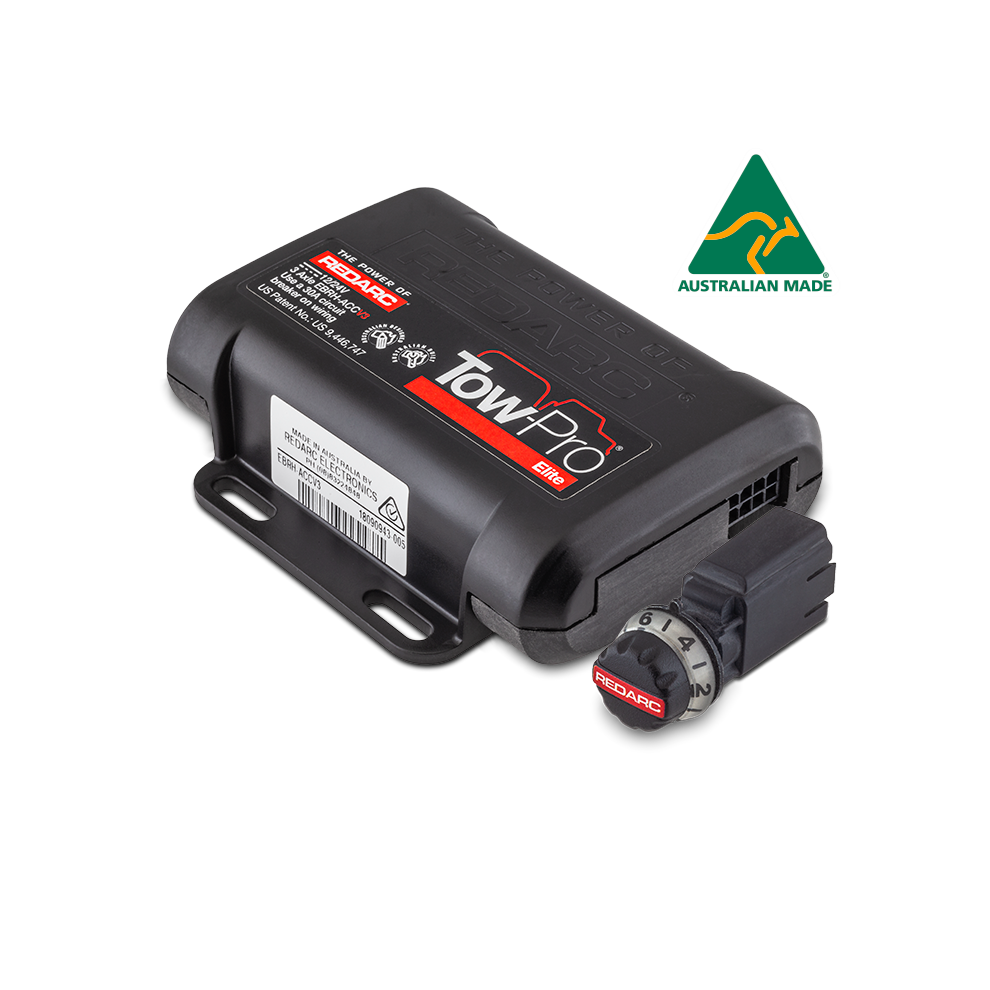

Redarc Brake Controller | Tow-Pro Elite V3 Electric
Overview
The Redarc Tow-Pro Elite V3 Electric Brake Controller is an advanced electric brake controller with a smooth and consistent braking experience, an easy-to-use interface, and easy installation. If you're in the market for an electric brake controller for your vehicle, the Redarc Tow Pro is an excellent choice.
When driving on an open highway with a trailer in tow, you're not just controlling your own vehicle — you're also managing the weight and momentum of up to 2.5 extra tonnes. An effective electric brake controller is essential for safe, controlled stops. The REDARC Tow-Pro Elite V3 delivers exactly that.
The Tow-Pro Elite V3 is an advanced proportional electric brake controller that applies the trailer's brakes in proportion to the braking force applied by the towing vehicle. This ensures smooth, consistent stops and significantly reduces the risk of jackknifing or loss of control. REDARC is a trusted name in the industry, and the Tow-Pro Elite V3 is built to the same high standard — it's the only brake controller you'll ever need.

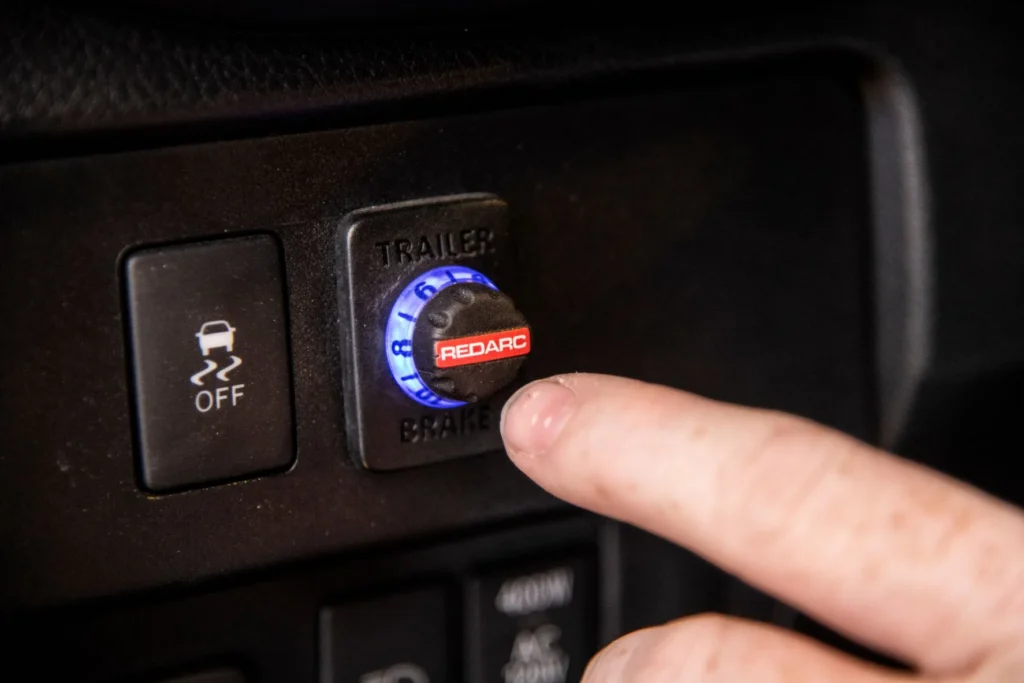

The user interface is simple and intuitive: a rotary dial lets you adjust braking force to suit your specific setup, while an easy-to-read LED display shows the current braking level and any diagnostic information at a glance.
Smooth Braking Capability
Continual software upgrades have been built into the Tow-Pro Elite, resulting in progressively smoother braking for motorists towing the broadest range of caravans, trailers, boat trailers and horse floats.
Compatible with All Modern and Older Vehicles
When used with the recommended REDARC wiring kits, the Tow-Pro Elite ensures compatibility with all new vehicle technology and features Active Calibration. It works in 12V vehicles with electric or electric/hydraulic trailer brakes, and in 24V vehicles with electric brakes — without additional adaptors. Electric/hydraulic brakes behind 24V vehicles require the EB24A adaptor. When installed as per instructions, it achieves an ADR-approved installation. It has also been approved by AL-KO for use with their ESC system and by Dexter with their DSC system.
Easy to Install

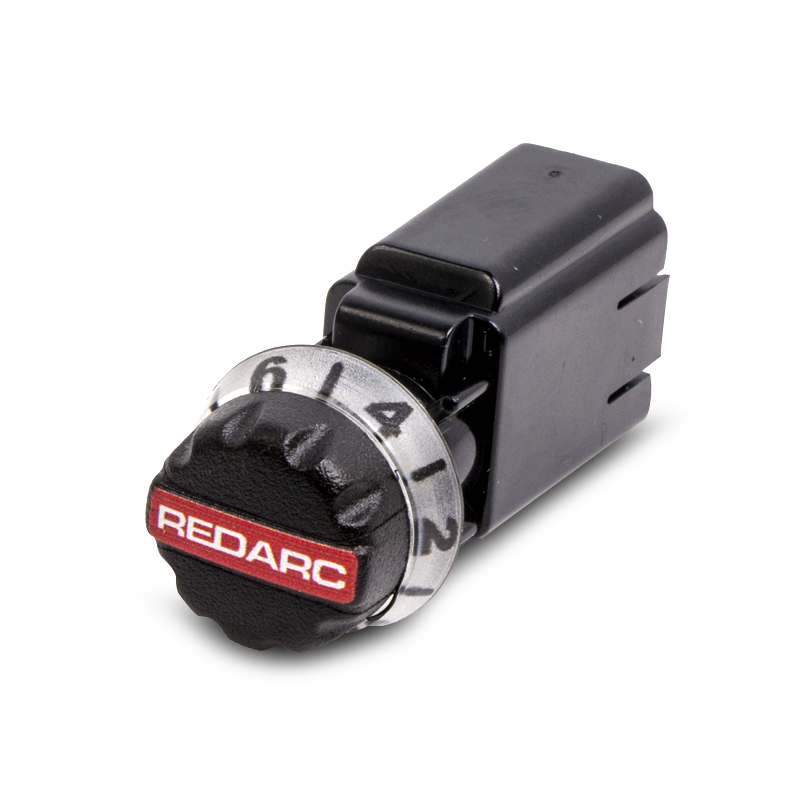

The Tow-Pro Elite V3 features a redesigned remote head that is smaller, slimmer and shaped to fit thicker and curved dashboards found in modern vehicles and trucks, making installation faster and easier than ever before.
Vehicle-Specific Installation Accessories

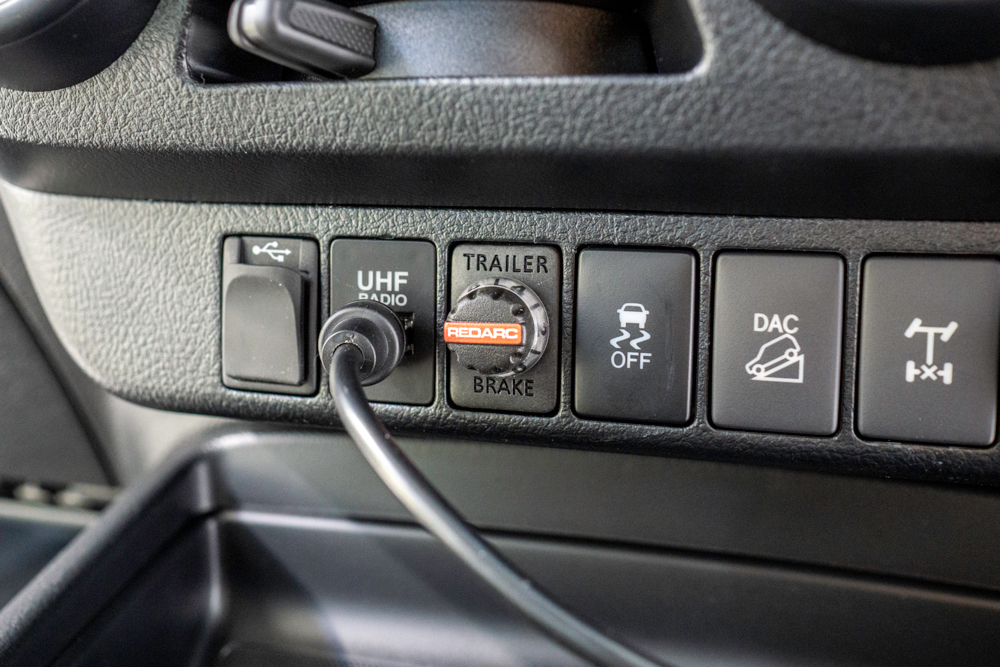

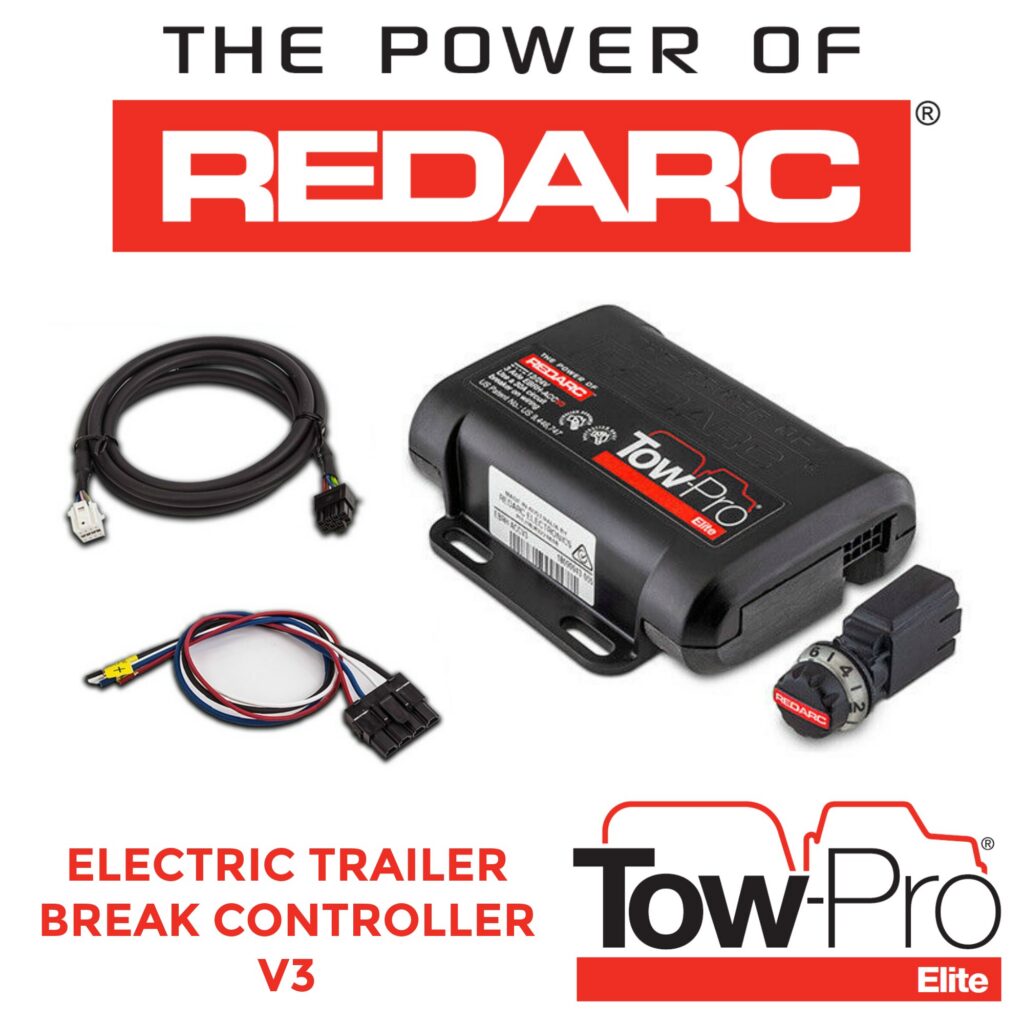

REDARC's range of wiring kits makes installation clean and reliable across a wide variety of vehicle makes and models. Selected TPSI switch inserts for many popular vehicles give the user interface a factory-fitted look — a single control knob that blends seamlessly into the dash.
The TPWKIT-012 is specifically required for the Ford Ranger and Everest range. The universal TPWKIT-013 and TPWKIT-014 wiring kits suit most other vehicles. For installers using their own wiring in any modern vehicle equipped with CAN Bus communications or cruise control, REDARC strongly recommends including the EPDK-001 protection device blocking module.
The award-winning Tow-Pro Elite is the first brake controller on the market to offer two types of braking in a single unit: proportional mode with inertia sensing for highway driving, and user-controlled mode that lets you manually set the required braking force with a simple turn of the dial. For more information on 4WD accessories and fit-outs, get in touch with our team.
Product Features
Discover what makes our products industry leaders.
Proportional Braking Technology
Applies trailer brakes proportionally to the towing vehicle's deceleration for smooth, consistent and safe stops.
Dual Braking Modes
The first brake controller to combine proportional (inertia sensing) and user-controlled braking modes in a single unit.
Active Calibration
Automatically calibrates to all new vehicle technology for reliable, precise brake control across a wide range of modern and older vehicles.
Universal Vehicle Compatibility
Works in 12V and 24V vehicles with electric and electric/hydraulic trailer brakes when installed with recommended REDARC wiring kits.
ADR-Approved and Industry-Certified
Achieves ADR-approved installation status and is approved by AL-KO (ESC) and Dexter (DSC) for use with their safety control systems.
Compact Remote Head Design
Redesigned smaller remote head fits into thicker and curved modern dashboards, ensuring a quicker, neater installation.
Continual Software Upgrades
Ongoing software updates are built into the Tow-Pro Elite for continuously improved braking across the widest range of trailers.
Everything you need to know
A deep dive into our industry-leading technology and high-performance standards.
What makes the Tow-Pro Elite V3 different from other brake controllers?
It is the first brake controller to offer both proportional (inertia sensing) and user-controlled braking modes in a single unit, combined with Active Calibration for compatibility with all vehicle types.
Is the Tow-Pro Elite V3 compatible with my vehicle?
When used with the recommended REDARC wiring kits, it is compatible with all modern and older vehicles. Contact us to confirm fitment for your specific vehicle.
What types of trailer brakes does it support?
It supports electric and electric/hydraulic trailer brakes in 12V vehicles. In 24V vehicles it supports electric brakes without additional adaptors; electric/hydraulic brakes behind 24V vehicles require the EB24A adaptor.
What wiring kit do I need for installation?
The TPWKIT-012 is specifically required for the Ford Ranger and Everest range. The universal TPWKIT-013 and TPWKIT-014 kits suit most other vehicles. For CAN Bus vehicles using custom wiring, the EPDK-001 protection module is strongly recommended.
Will the remote head fit my modern vehicle's dashboard?
Yes — the compact remote head is specifically designed to fit the thicker and curved dashboards found in modern vehicles and trucks.
