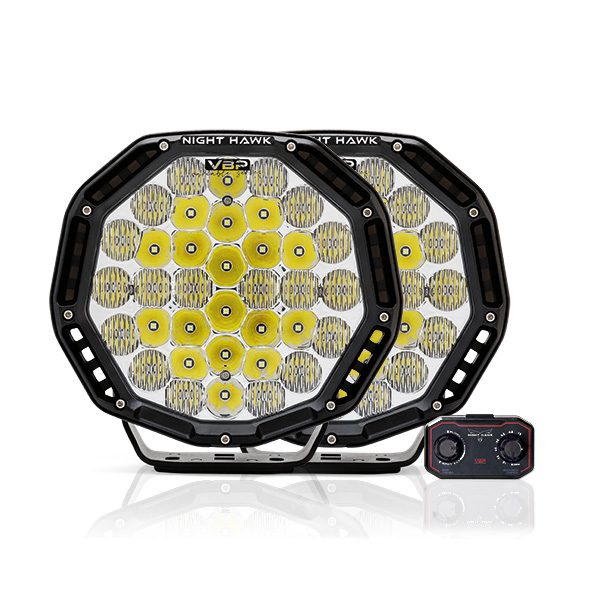

BUSHRANGER NIGHTHAWK DRIVING LIGHT VBP Variable Beam 9"

$1,140.00

Overview

NIGHT HAWK DRIVING LIGHT VBP Variable Beam 9″

From full spot beam to full flood beam at the turn of a dial, the Variable Beam Pattern (VBP) Driving Light Kit is innovation at its finest.

ENQUIRE NOW

Part No. NHX230VBP-KIT

Direct the light where you need it most. From full spot beam to full flood beam at the turn of a dial, the Night Hawk Driving Light Variable Beam Pattern (VBP) Driving Light Kit is innovation at its finest. With everything you need for quick and easy installation, the VBP Driving Light Kit puts you in complete control of your lights — with adjustable light intensity and adjustable beam pattern at your fingertips.

NIGHT HAWK VBP Variable Beam 9″ DRIVING LIGHT KIT

Take control of your driving lights and create a vision that works for you. The Night Hawk Driving Light VBP gives you the ability to choose the right light intensity and beam pattern to suit your eyes and your adventure. Adjust the settings on the fly with a dual-dial backlit controller, no matter where the road — or track — takes you.

We all see the world differently, so be sure to get a light that lets you choose the best view. All Night Hawk Variable Series kits come with everything you need for a simple installation. Designed and engineered in Australia with versatility and user control at the forefront, the modern shape incorporates a unique look, is built to last, and is one of the most powerful LED lighting options on the market.

Kit Contains

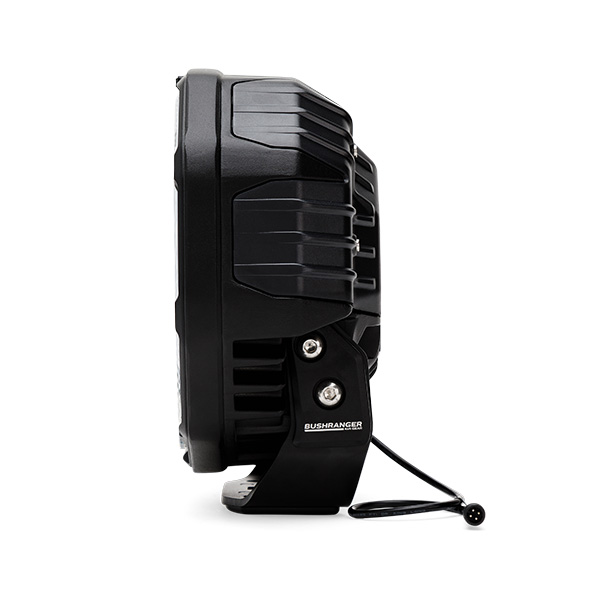

2 x 9″ Variable Beam Pattern LED lights
1 x Plug-and-play, relay-free wiring system with backlit dual dial controller (runs up to 4 VBP lights)
1 x Set of mounting hardware

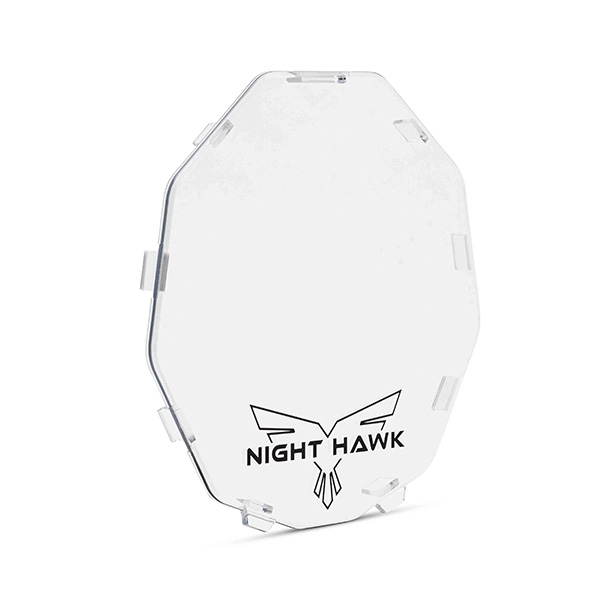

2 x Optional protective covers

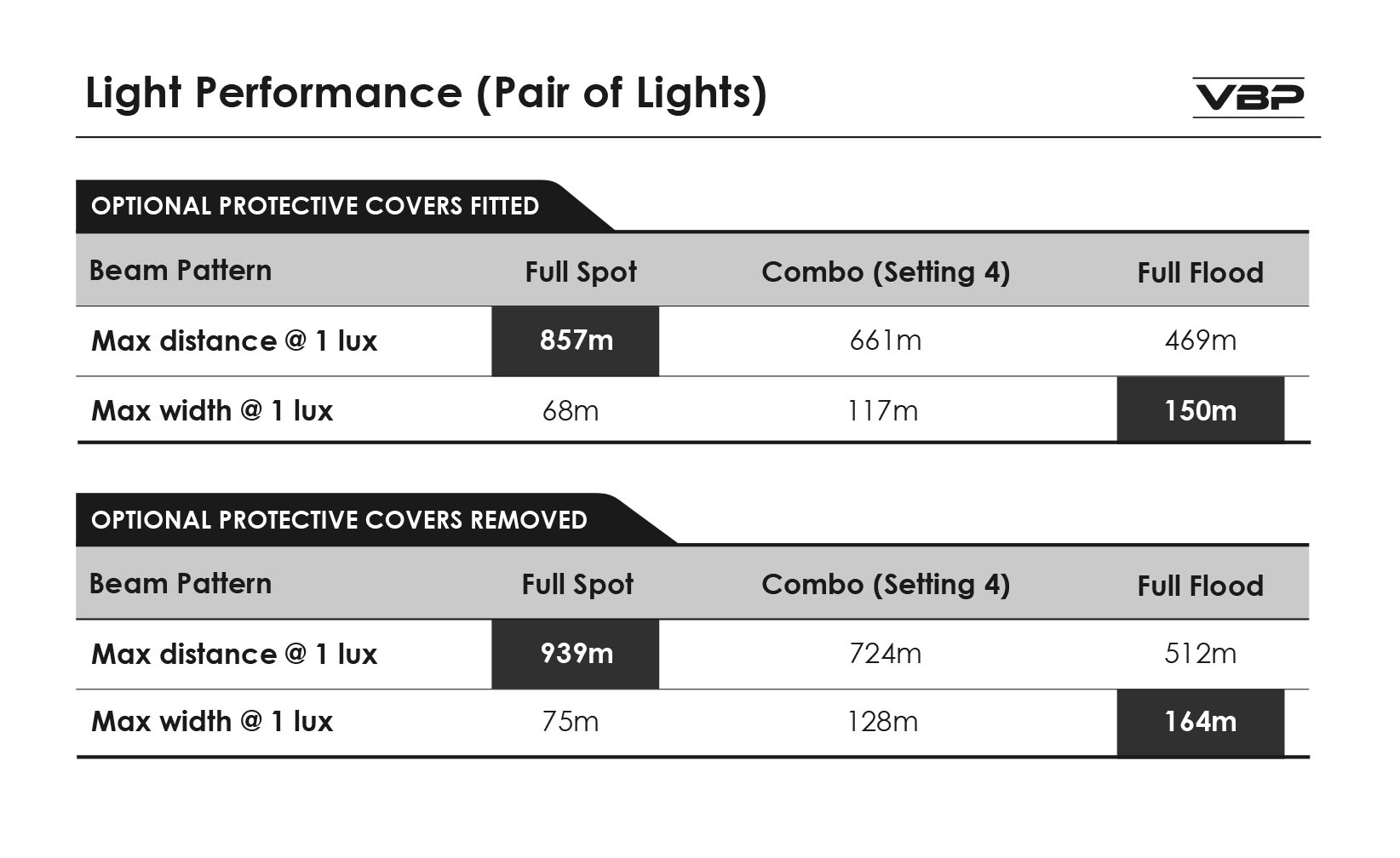

Light Performance

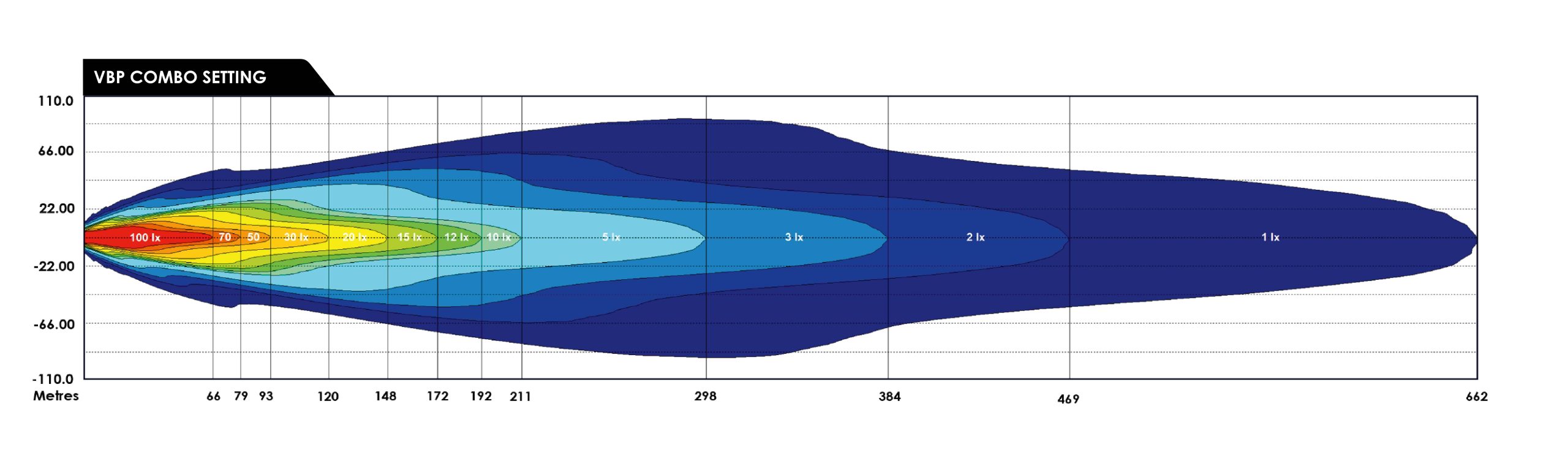

Light performance for the VBP kit (pair of lights) is shown in the charts below:

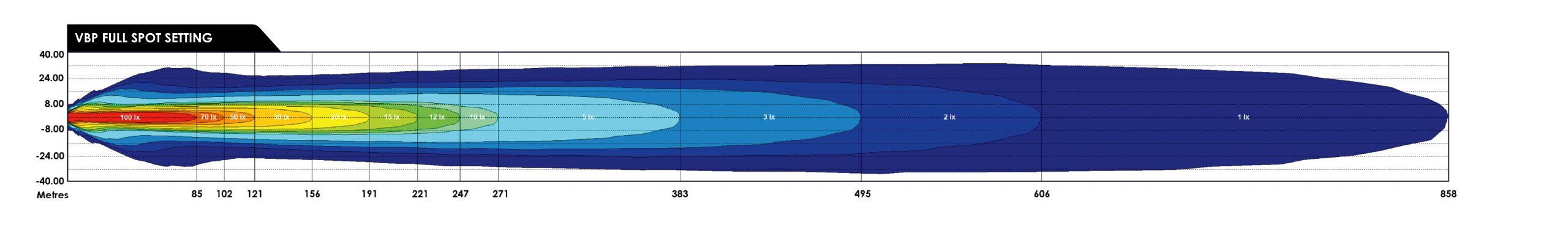

VBP Kit Full spot setting, covers fitted

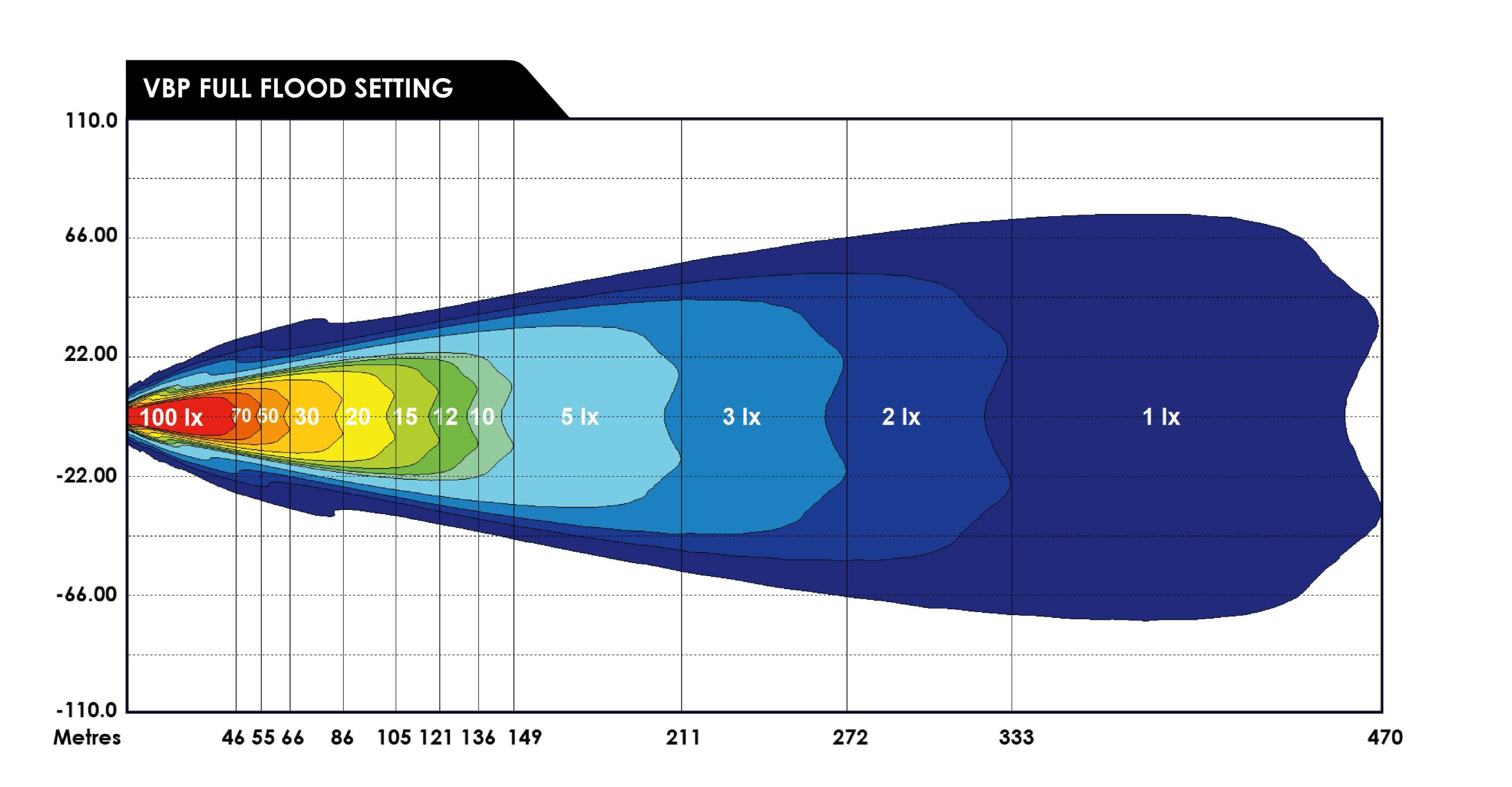

VBP Kit Full flood setting

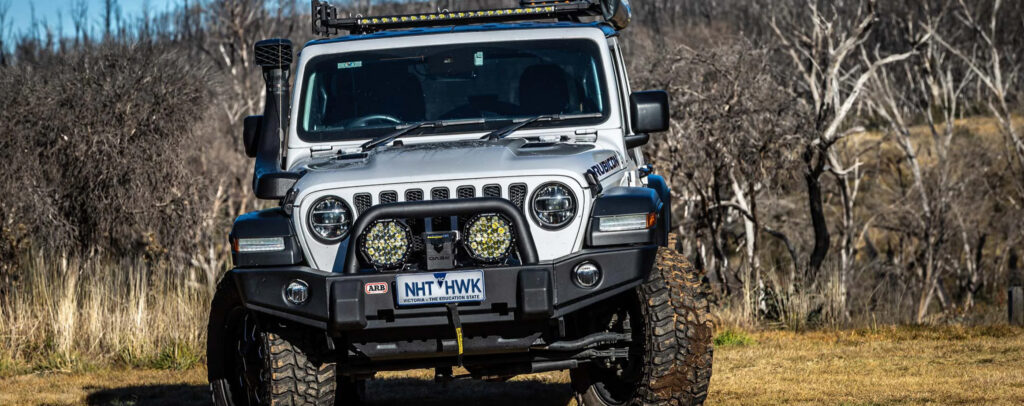

BUSHRANGER NIGHTHAWK DRIVING LIGHT VBP Variable Beam 9" installation

72 CREE LEDs

72 genuine high-performance CREE LEDs provide powerful, reliable output across all beam settings.

939m Maximum Spot Distance

Full spot setting reaches 939 metres at 1 lux per kit for outstanding long-range visibility.

164m Maximum Flood Width

Full flood setting covers 164 metres wide at 1 lux per kit for broad-area illumination.

8 Electronically Controlled Beam Pattern Settings

Smoothly adjust from full spot to full flood — and anywhere in between — at the turn of a dial.

8 Brightness Settings

Independently adjust light intensity from 0% to 100% to suit the conditions.

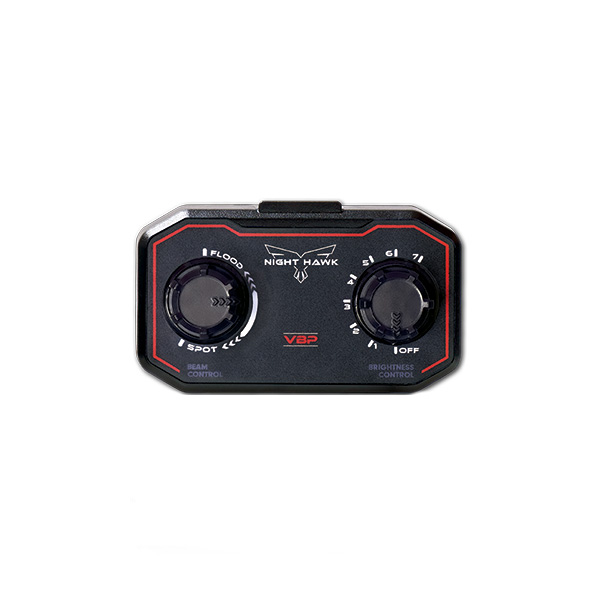

Backlit Dual-Dial Controller

Beam pattern and brightness are both controlled via an easy-to-use backlit dual-dial controller for on-the-fly adjustment.

Relay-Free Plug-and-Play Wiring

The supplied wiring system needs no relay, making installation quick and straightforward.

Designed and Engineered in Australia

Purpose-built for demanding Australian conditions with a modern, rugged design and long-term durability.

What beam patterns can the VBP lights produce?

The VBP lights offer 8 beam pattern settings, ranging continuously from full spot to full flood. You can dial in the exact beam shape to suit your driving environment.

Can I adjust beam pattern and brightness at the same time?

Yes, the backlit dual-dial controller lets you independently adjust both beam pattern (full spot to full flood) and brightness (0–100%) simultaneously.

What is the maximum spot beam distance?

In full spot mode, the kit reaches 939 metres at 1 lux. In full flood mode, the beam width reaches 164 metres at 1 lux.

What is included in the VBP kit?

The kit includes 2 x 9″ VBP LED lights, a plug-and-play relay-free wiring system with backlit dual dial controller (supports up to 4 VBP lights), mounting hardware, and 2 optional protective covers.

How does the VBP differ from the VLI and VCT models?

The VBP controls beam pattern (spot to flood) and brightness — giving you physical beam shaping without changing covers. The VLI controls brightness only, and the VCT controls colour temperature and brightness. All use dial-based controllers.
