ROADVISION Stealth Light Bar Range

Overview

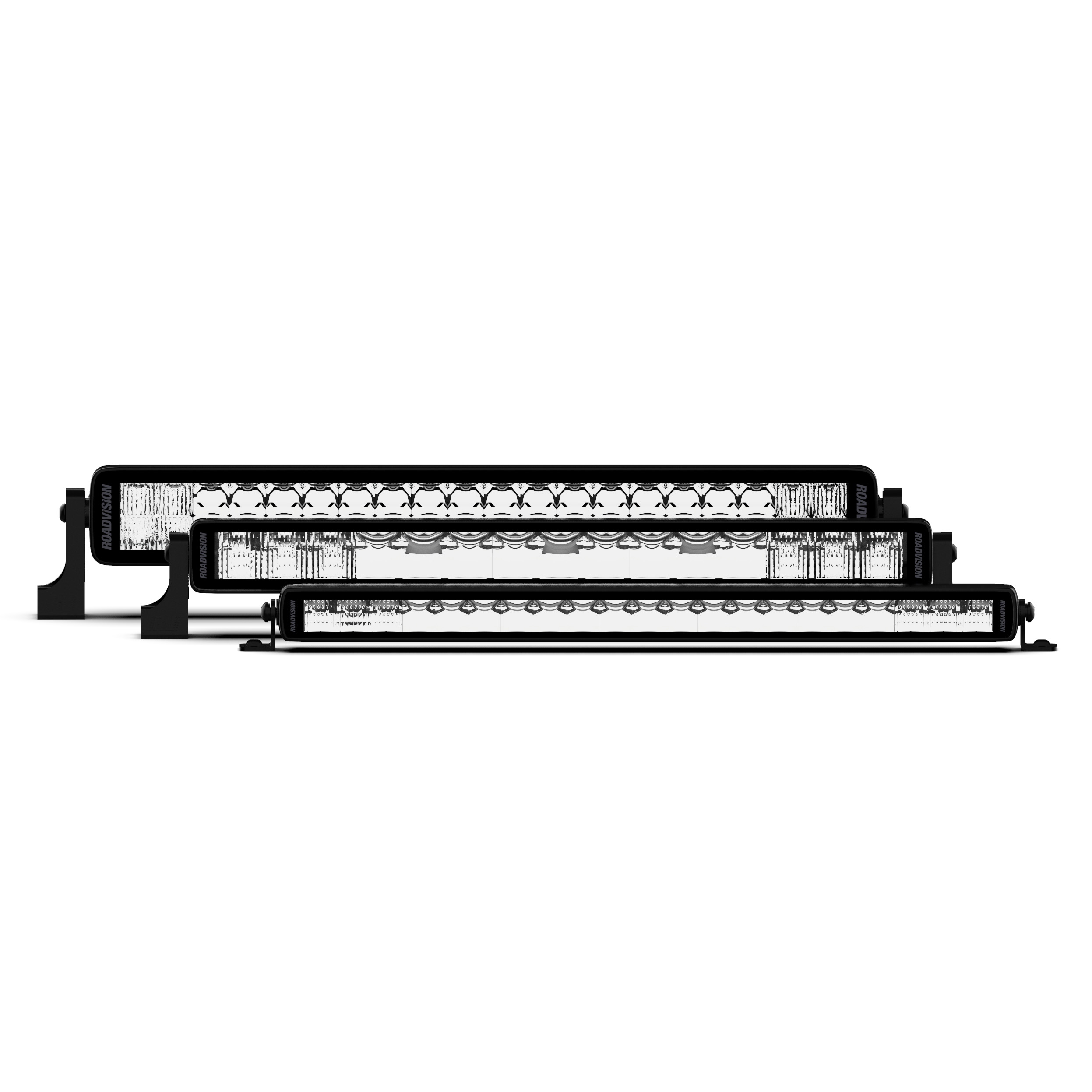

ROADVISION Stealth Light Bar Range

Available in single and dual row models from 7” to 52”, the smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.

ENQUIRE NOW

ROADVISION Stealth Light Bar Range

Roadvision’s Stealth Series range of LED Bar and Driving Lights deliver a sleek modern appearance, specifically designed with different combinations of distance or intensity to suit your main vehicle use and application. Built to deliver the highest performance and withstand the harshest conditions. The Stealth Series range of LED Bar and Driving Lights feature Osram LEDs, Thermal Management Technology, a tough yet lightweight aluminium housing and polycarbonate lenses providing superior performance and durability.

WHEN MODERN DESIGN MEETS MAXIMUM PERFORMANCE

Roadvision’s new Stealth Range of light bars represents the best performance from our new projector-style lens in a lightweight tough diecast aluminium housing. Available in single and dual row models from 7” to 52”, the smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.

The Stealth Series has been designed to deliver three unique performance characteristics with different combinations of distance or intensity suited to your main vehicle use and application:

Long-range slimline S40 Series reaches up to 917m @ 1 Lux and produces up to 14970lm.
High-intensity S52 Series reaches up to 812m @ 1 Lux and produces up to 19,436lm.

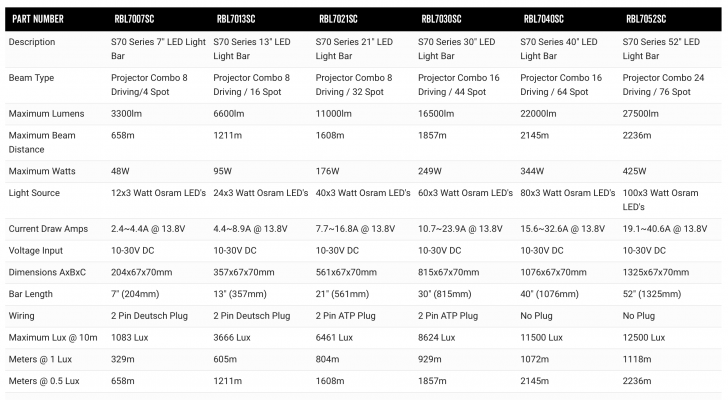

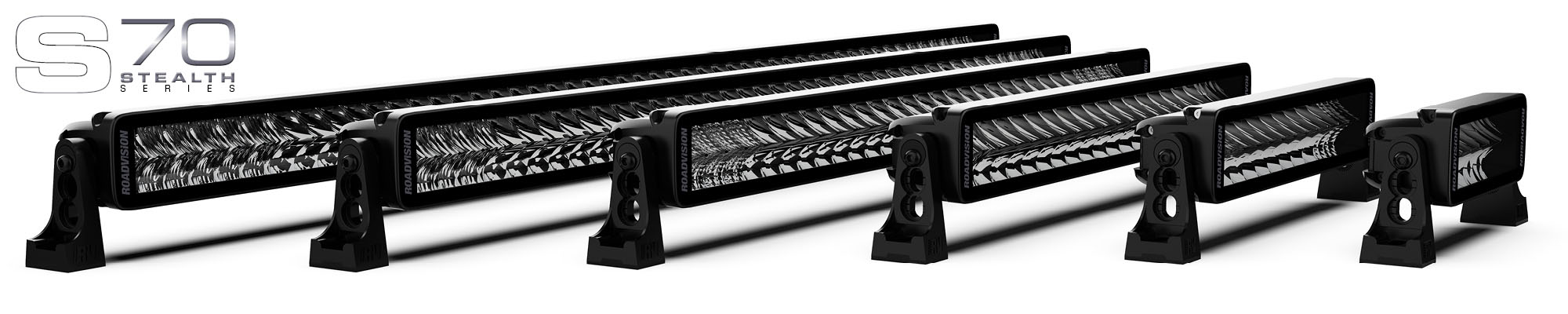

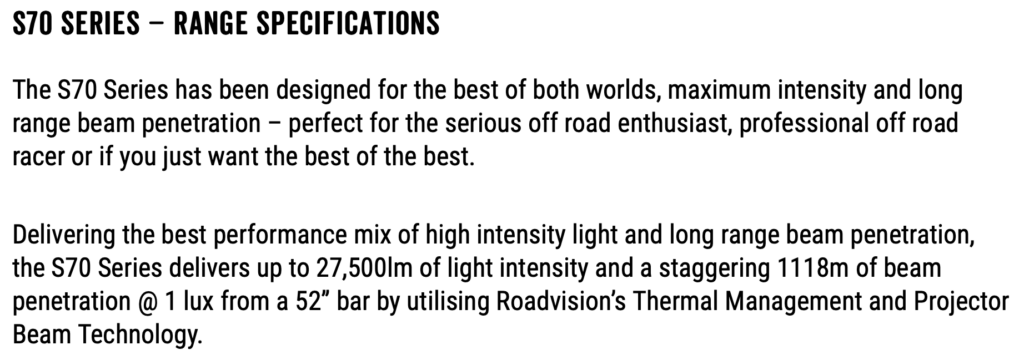

The best range and intensity from the S70 Series reach up to 1118m @ 1 lux and produce up to 27,500lm.

ROADVISION STEALTH RANGE FEATURES

Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
Projector Beam Technology producing more power from a smaller package
Single row light bar producing up to 27500lm of instant light output
Available in 7” to 52” models
Osram Hi-Lux LED’s produce super white light close to daylight
Multi-volt 10-30V DC input & super low current draw
50,000 hour LED lifespan with solid state technology
Advanced Thermal Management Technology
Light weight and tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP67 rated
9 position adjustable anti-vibration end mount system & low profile slide mounts
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

S40 Series Spec Sheet here

S52 Series Spec Sheet here

S70 Series Spec Sheet here

DIMENSIONS

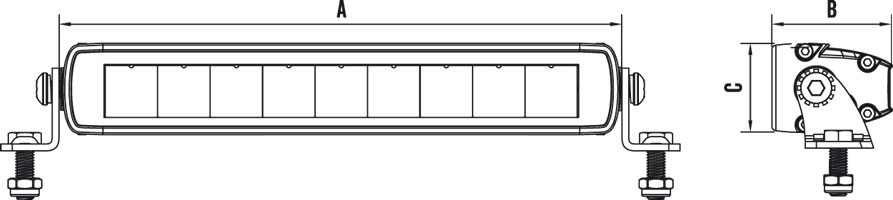

Roadvision Light Bar S40 Series

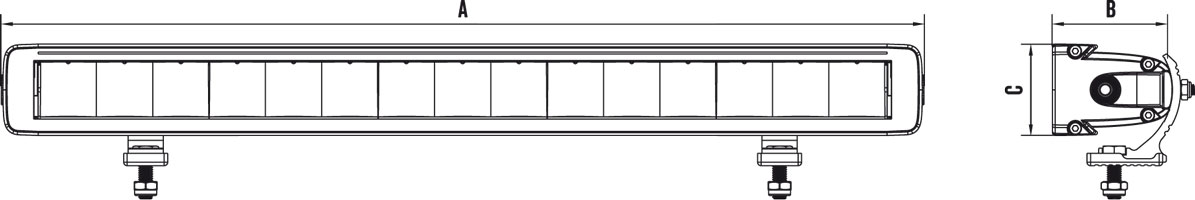

Roadvision Light Bar S52 Series

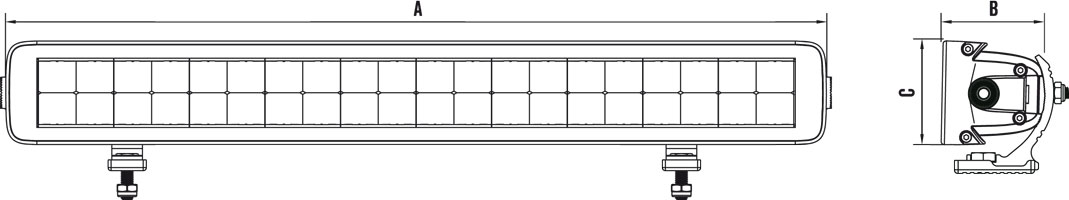

Roadvision Light Bar S70 Series

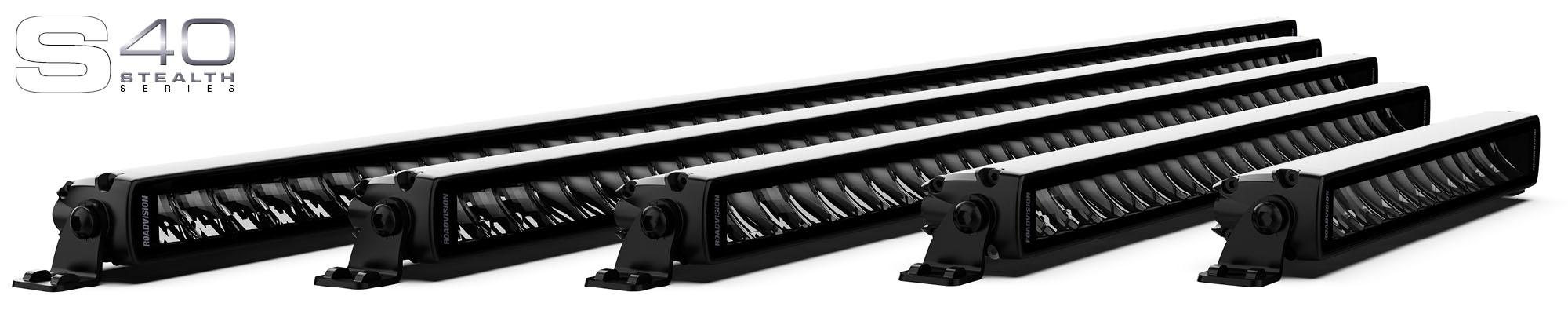

S40 SERIES – RANGE SPECIFICATIONS

The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving.

Suitable for use on trucks, 4×4’s and SUV’s in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit.

The S40 delivers outstanding lux performance from a very small package reaching up to 916m @ 1 lux from a 50” bar.

Part Number	RBL4013SC	RBL4021SC	RBL4032SC	RBL4040SC	RBL4050SC
Description	S40 Series 13" LED Light Bar	S40 Series 21" LED Light Bar	S40 Series 32" LED Light Bar	S40 Series 40" LED Light Bar	S40 Series 50" LED Light Bar
Beam Type	Projector Combo 6 Driving/6 Spot	Projector Combo 6 Driving/15 Spot	Projector Combo 6 Driving / 27 Spot	Projector Combo 6 Driving / 36 Spot	Projector Combo 12 Driving / 42 Spot
Maximum Lumens	3218lm	5975lm	9211lm	11706lm	14970lm
Beam Distance	832m	1275m	1568m	1668m	1833m
Maximum Watts	49W	94W	150W	188W	231W
Light Source	12x3 Watt Osram LED's	21x3 Watt Osram LED's	33x3 Watt Osram LED's	42x3 Watt Osram LED's	54x3 Watt Osram LED's
Current Draw Amps	2.9~4.1A @ 13.8V	6.6~9.2A @ 13.8V	10.3~14.4A @ 13.8V	11.7~17.2A @ 13.8V	13.6~22.1A @ 13.8V
Voltage Input	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC
Dimensions AxBxC	315x55x40mm	522x55x40mm	798x55x40mm	1005x55x40mm	1281x55x40mm
Bar Length	13" (315mm)	21" (522mm)	32" (798mm)	40" (1005mm)	50" (1281mm)
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin ATP Plug	2 Pin ATP Plug	2 Pin ATP Plug
Maximum Lux @ 10m	1730 Lux	4065 Lux	6150 Lux	6957 Lux	8402 Lux
Meters @ 1 Lux	416m	638m	784m	834m	917m
Meters @ 0.5 Lux	832m	1275m	1568m	1668m	1833m

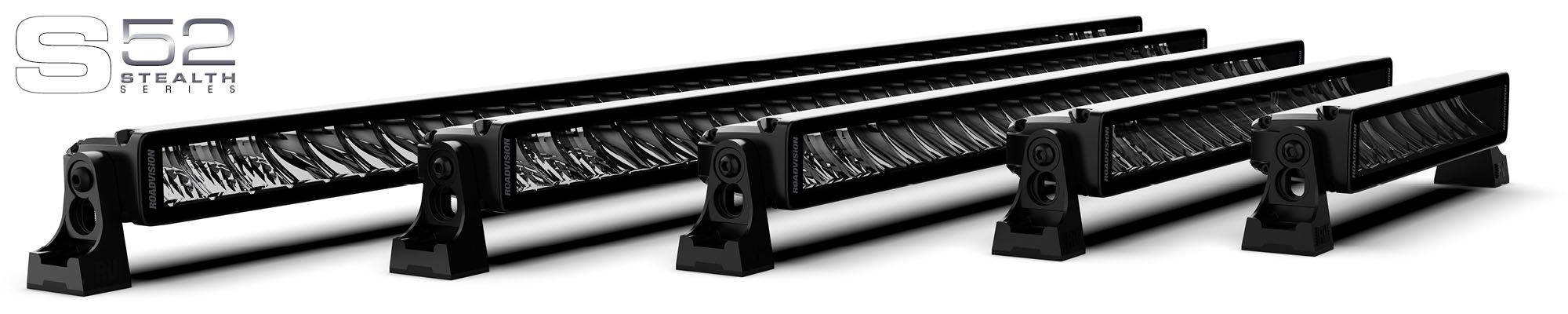

S52 SERIES – RANGE SPECIFICATIONS

The Stealth 52 Series are a compact single row light bar series designed with a high intensity light output whilst still achieving mid to long range beam penetration – ideal for windier roads and bush tracks where maximum visibility and light intensity is required.

Perfect for trucks, 4×4’s, SUV’s, agricultural and industrial for nudge, bull bar & roof rack mounts.

With larger 10W LED’s, the S52 Series delivers outstanding lumen performance of up to 19,436lm whilst still reaching up to 812m @ 1 lux from a 50” bar.

Part Number	RBL5213SC	RBL5221SC	RBL5230SC	RBL5240SC	RBL5250SC
Description	S52 Series 13" LED Light Bar	S52 Series 21" LED Light Bar	S52 Series 30" LED Light Bar	S52 Series 40" LED Light Bar	S52 Series 50" LED Light Bar
Beam Type	Projector Combo 6 Driving / 3 Spot	Projector Combo 6 Driving / 9 Spot	Projector Combo 6 Driving / 18 Spot	Projector Combo 6 Driving / 24 Spot	Projector Combo 6 Driving / 33 Spot
Maximum Lumens	6063lm	9560lm	13779lm	16500lm	19463lm
Beam Distance	721m	1088m	1334m	1483m	1625m
Maximum Watts	74W	127W	208W	257W	335W
Light Source	9x10 Watt Osram LED's	15x10 Watt Osram LED's	24x10 Watt Osram LED's	30x10 Watt Osram LED's	39x10 Watt Osram LED's
Current Draw Amps	4.1~6.2A @ 13.8V	6.2~10.6A @ 13.8V	10.8~17.3A @ 13.8V	13.6~22.1A @ 13.8V	15.4~28.4A @ 13.8V
Voltage Input	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC
Dimensions AxBxC	332x67x52mm	524x67x52mm	812x67x52mm	1004x67x52mm	1292x67x52mm
Bar Length	13" (332mm)	21" (524mm)	30" (812mm)	40" (1004mm)	50" (1292mm)
Wiring	2 Pin Deutsch Plug	2 Pin ATP Plug	2 Pin ATP Plug	2 Pin ATP Plug	No Plug
Maximum Lux @ 10m	1300 Lux	2964 Lux	4450 Lux	5500 Lux	6600 Lux
Meters @ 1 Lux	361m	544m	667m	742m	812m
Meters @ 0.5 Lux	721m	1088m	1334m	1483m	1625m
