$1,350.00
Engineered in Australia to meet the demands of serious off-road enthusiasts who require dependable performance, the REVO MKII defines a new era of unmatched reliability, effortless fitment and operation, enhanced safety, and unparalleled longevity.
Everything you need to know about the product

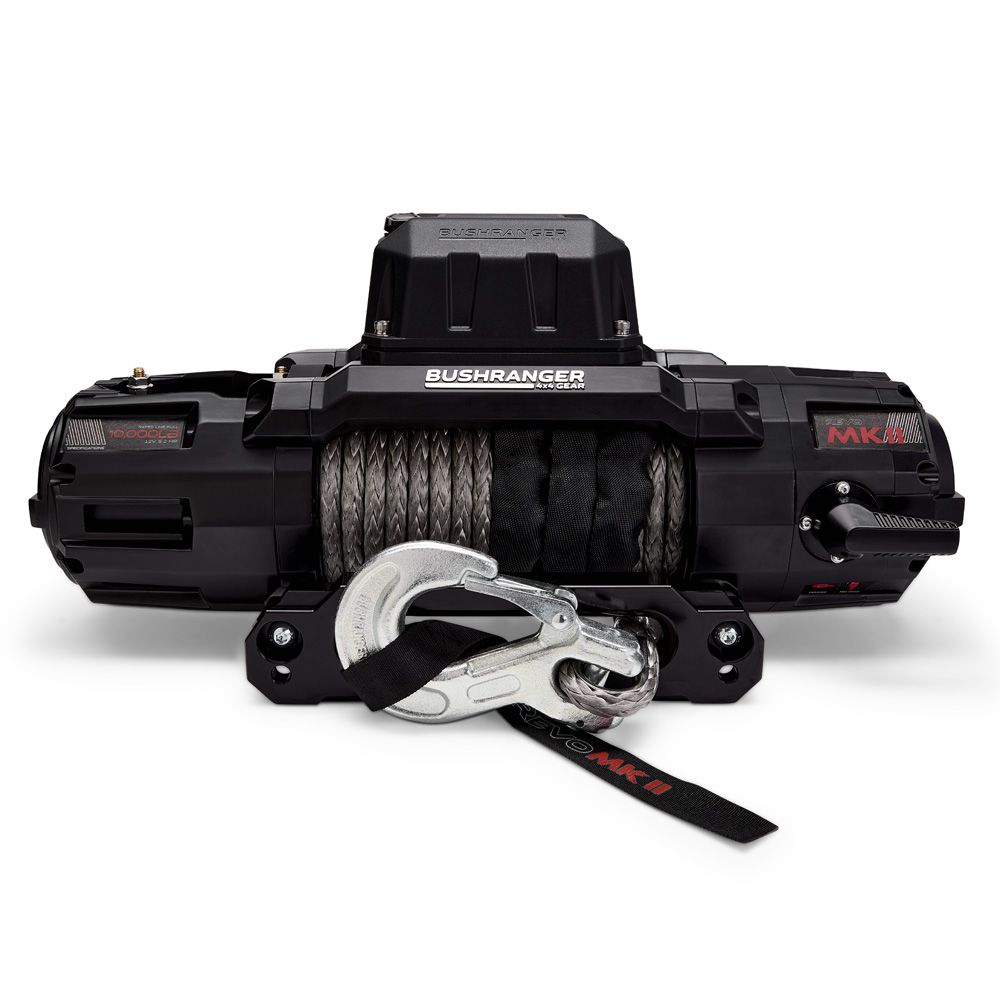

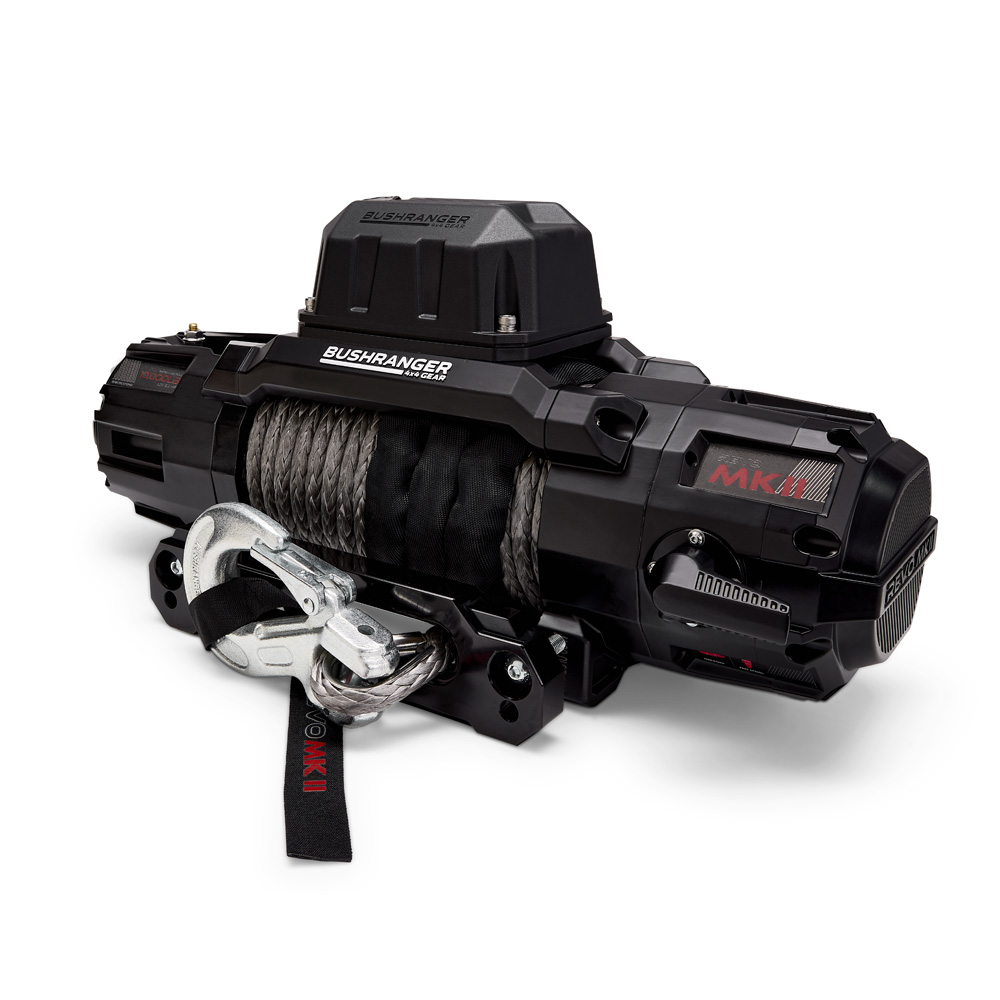

The Bushranger Winch REVO MKII (Model: RWM120S) is a 12,000lb vehicle recovery winch engineered to meet the demands of serious off-road enthusiasts who require dependable performance in the most challenging environments. Boasting a wide range of upgrades drawn from years of real-world testing and feedback, the REVO MKII is an overall lighter, easier-to-fit, safer, and more compact winch with increased durability over its predecessor.
The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

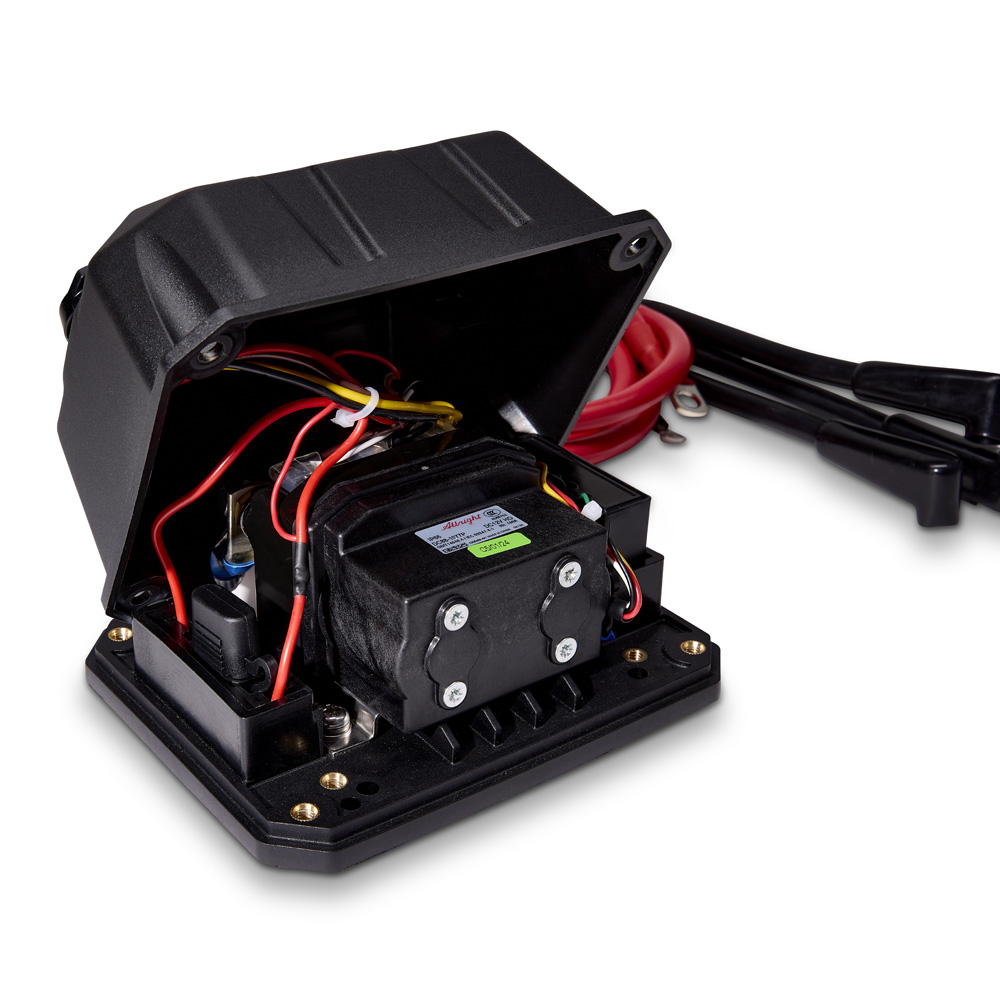

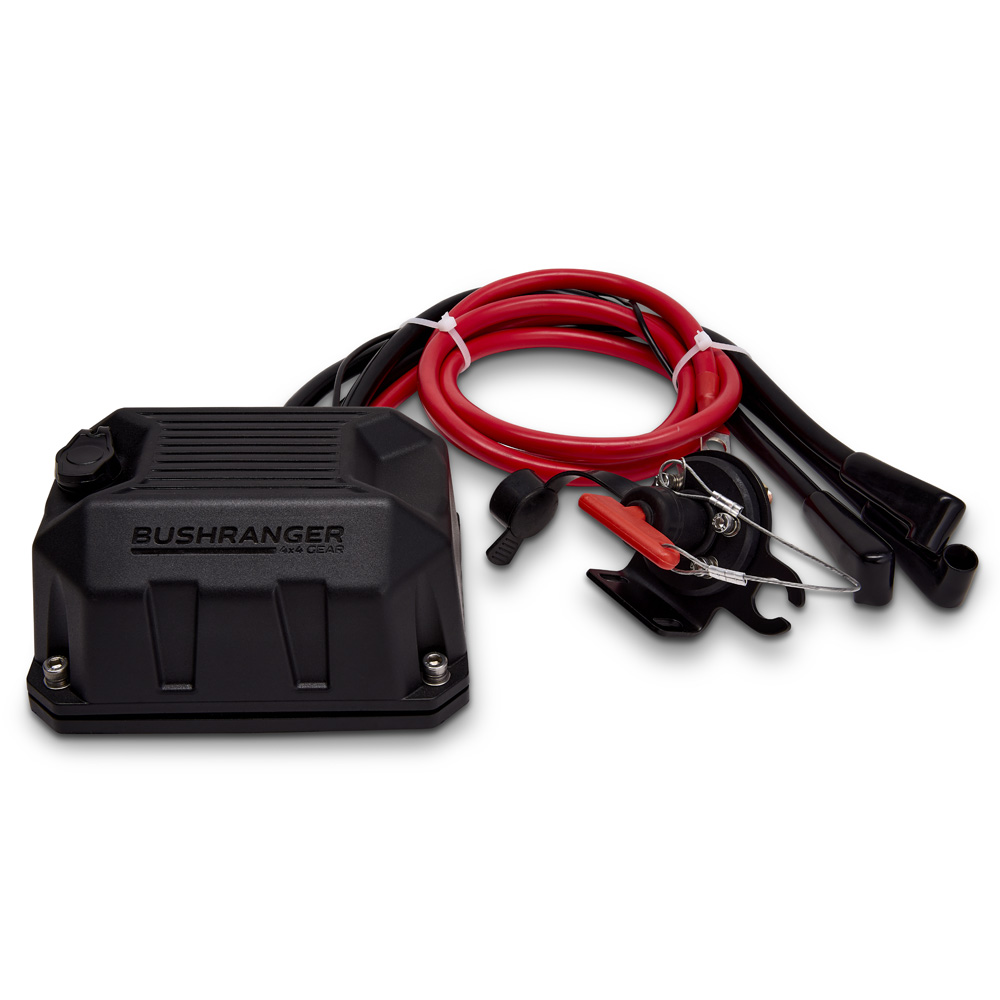

The compact, lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.
The Albright DC contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.

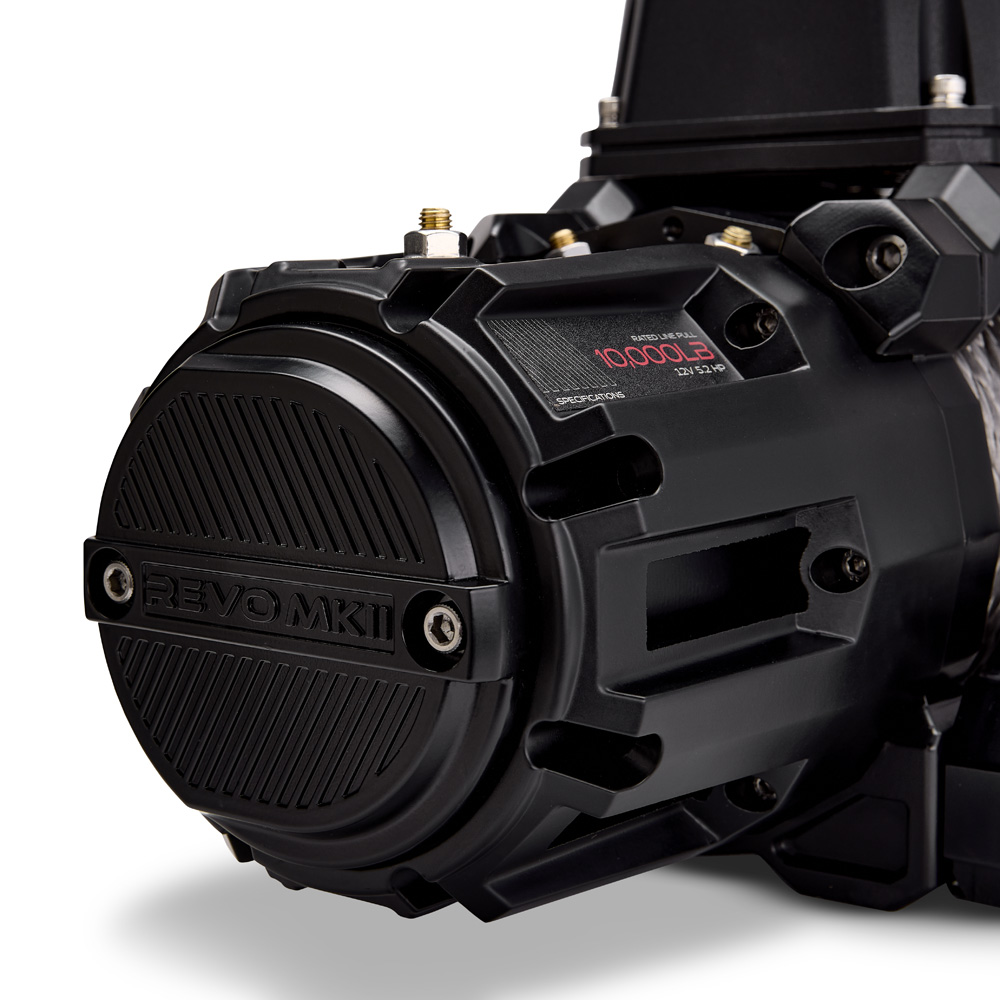

The 12V, 6.2HP series wound motor is constructed using high-grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.
The gearbox-mounted brake provides 100% load holding and the capacity for fast-powered unspooling under no load, without any damage to the winch.
Features hardened steel gearing for improved load distribution, maximum strength and durability, and is externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.
Uncompromised strength and rigidity are at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.

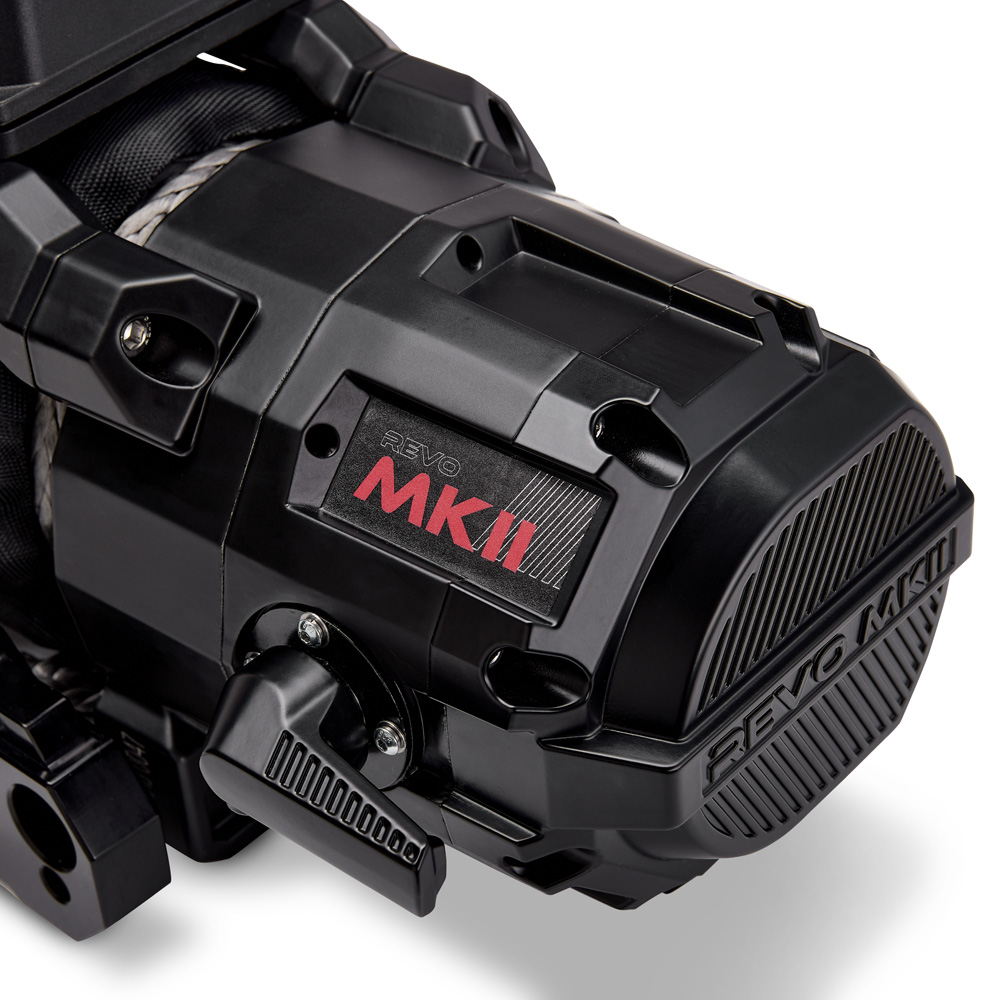

The no-lift clutch handle reduces fitment interference and presents simple operation even in hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
A 500-amp winch isolation switch provides complete separation of the winch from the vehicle battery when not in use, delivering the highest level of safety as standard.
The completely sealed motor and gearbox is rated to IP68 standard for maximum protection against water, dust, and debris.

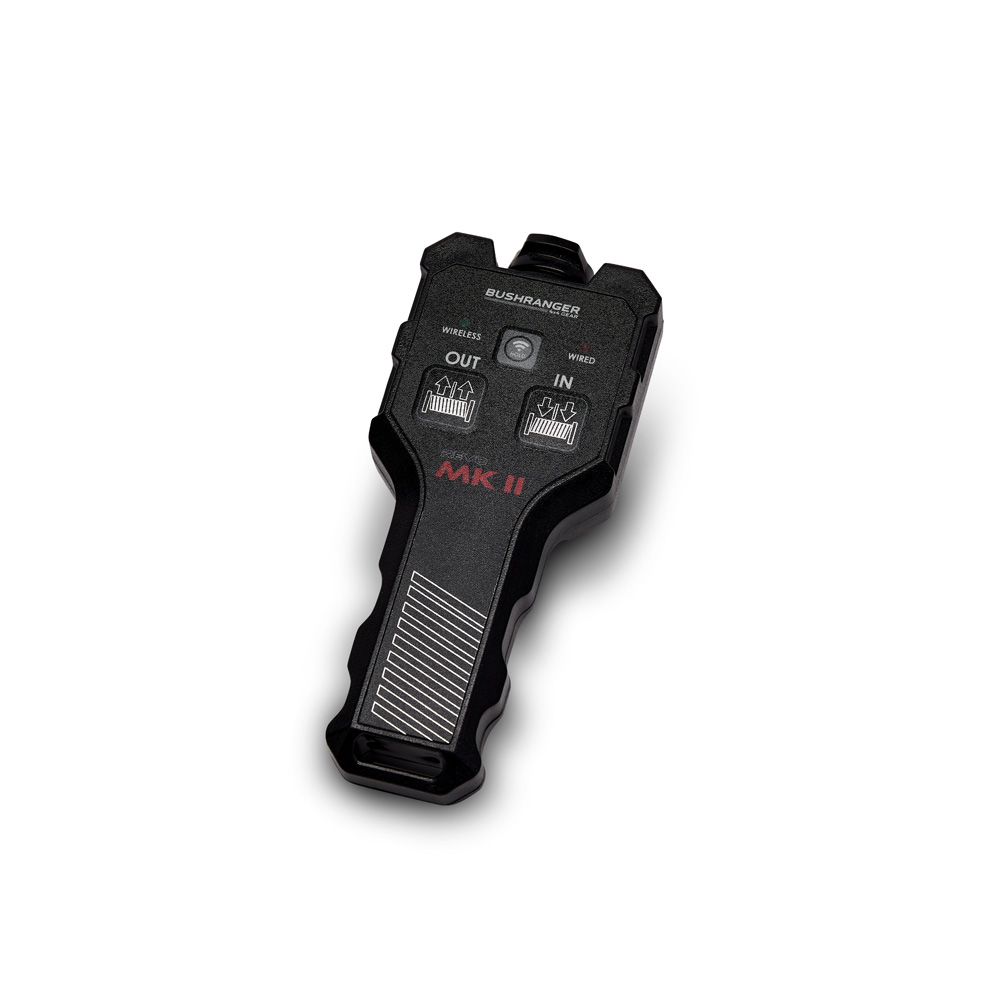

The compact wireless-enabled hand controller contains a lacquered PCB allowing operation within a 30m wireless range, or by direct connection via the 5m lead.
Fitted weight: 33.9kg
Kit includes: REVO MKII winch, synthetic rope (24m × 11mm) with protective sleeve, prewired control box, dual connection remote control, forged steel hook with pull tag, aircraft grade aluminium hawse fairlead, main power isolation switch, heavy gauge wiring, and hi-tensile mounting hardware.
Discover what makes our products industry leaders.
Rigorous testing with the highest quality components ensures reliability and longevity in the harshest environments.
The Albright DC88P contactor is sealed to IP67 and delivers unmatched durability and reliable motor control.
High-grade series wound motor reduces current draw and increases line speeds for a prolonged lifespan under full load.
Gearbox-mounted brake holds 100% of the rated load and allows fast-powered free-spooling without risk of damage.
Externally adjustable in 16 clocking positions for optimal clutch handle orientation in any bull bar configuration.
Fully sealed motor and gearbox rated IP68 withstand complete submersion against water, dust, and debris.
Included isolation switch completely separates the winch from the vehicle battery when not in use.
Dual-connection hand controller operates wirelessly up to 30m or via a direct 5m wired lead.
Lightweight control box with multiple threaded insert locations fits confined spaces and suits most bull bars.
Grey synthetic rope with protective sleeve is lighter and safer to handle than wire rope.
Two-position aluminium hawse fairlead guides the synthetic rope smoothly under load.
A deep dive into our industry-leading technology and high-performance standards.
The rated line pull on the first layer is 12,000lbs (5,443kg).
Yes. The kit includes a dual-connection hand controller that operates wirelessly up to 30m or via a direct 5m wired connection.
The RWM120S comes with a 24m × 11mm grey synthetic rope with a protective sleeve.
The motor and gearbox are rated to IP68 — fully sealed against water, dust, and debris.
The winch carries a Limited Lifetime Warranty, with a 7-year warranty on electrical components. Contact us for full warranty terms.
The RWM120S measures 600mm (L) × 194mm (W) × 185mm (H) with a fitted weight of 33.9kg.
